Leonardo wall radiant system, The ideal solutions for environments with high heat demand.
- Surface Wall
- Type Single family residence, Multi-family residence, Services
Pipe inserted into the panel
Fittings without O-rings
Possibility to choose the most suitable insulation for the design requirements
The Leonardo radiant wall is an active surface that transforms into a space-saving means of air conditioning. Leonardo is the air conditioning system that, thanks to its special configuration, manages to maximize yield, delivering top-level comfort. Thanks to the use of piping having a larger diameter (10x1.3 mm) than ceiling systems, and its serpentine pattern, the radiant wall allows a greater exchange of energy, thus increasing the rate of inertia and performance. The Leonardo radiant wall consists of modular plasterboard panels with MidiX piping already inserted. The plasterboard panel (stated thermal conductivity of 0.25 W/mK) is supplied without an insulating sheet.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|
TECHNICAL DATA SHEET
Prefinished 25 mm gypsum board panel for wall mounting, complete with MidiX Plus type II PE-RT high temperature resistant polyethylene piping (ISO 22391, ISO 24033, ISO 21003, EN 1264, BRL 5602, BRL 5607, DIN 4726, ISO EN 11855) with EVOH oxygen barrier in the pipe wall and vapor permeability of less than 0.32 mg/(mÇd) at 40°C and 3.6 mg/(mÇd) at 80°C, tested according to ISO 17455 in correspondence with BRL 5602 - BRL 5607 - DIN 4726 - EN 1264-4 and ISO EN 11855, class 4 and 5 mechanical strength characteristics at 6 bar (ISO 10508) for an expected life of 50 years; the piping is arranged in a serpentine pattern so as to maximize the exchange surface between pipe and plasterboard; 10 mm diameter and thickness equivalent to 1.3 mm (UNI EN 1264-4). Smooth finishing.

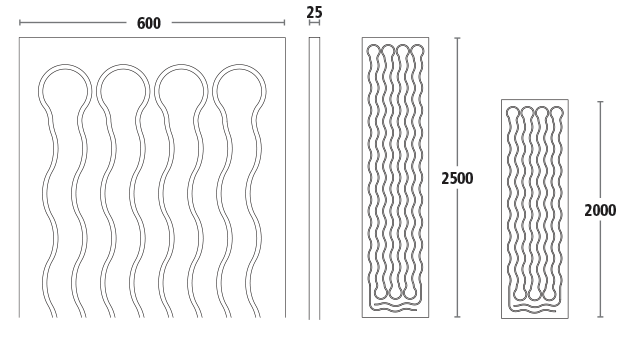

600x2500x25 mm |  600x2000x25 mm |
600x2500x25 mm |
600x2000x25 mm |
600x2500x25 mm |
600x2000x25 mm |
- 1

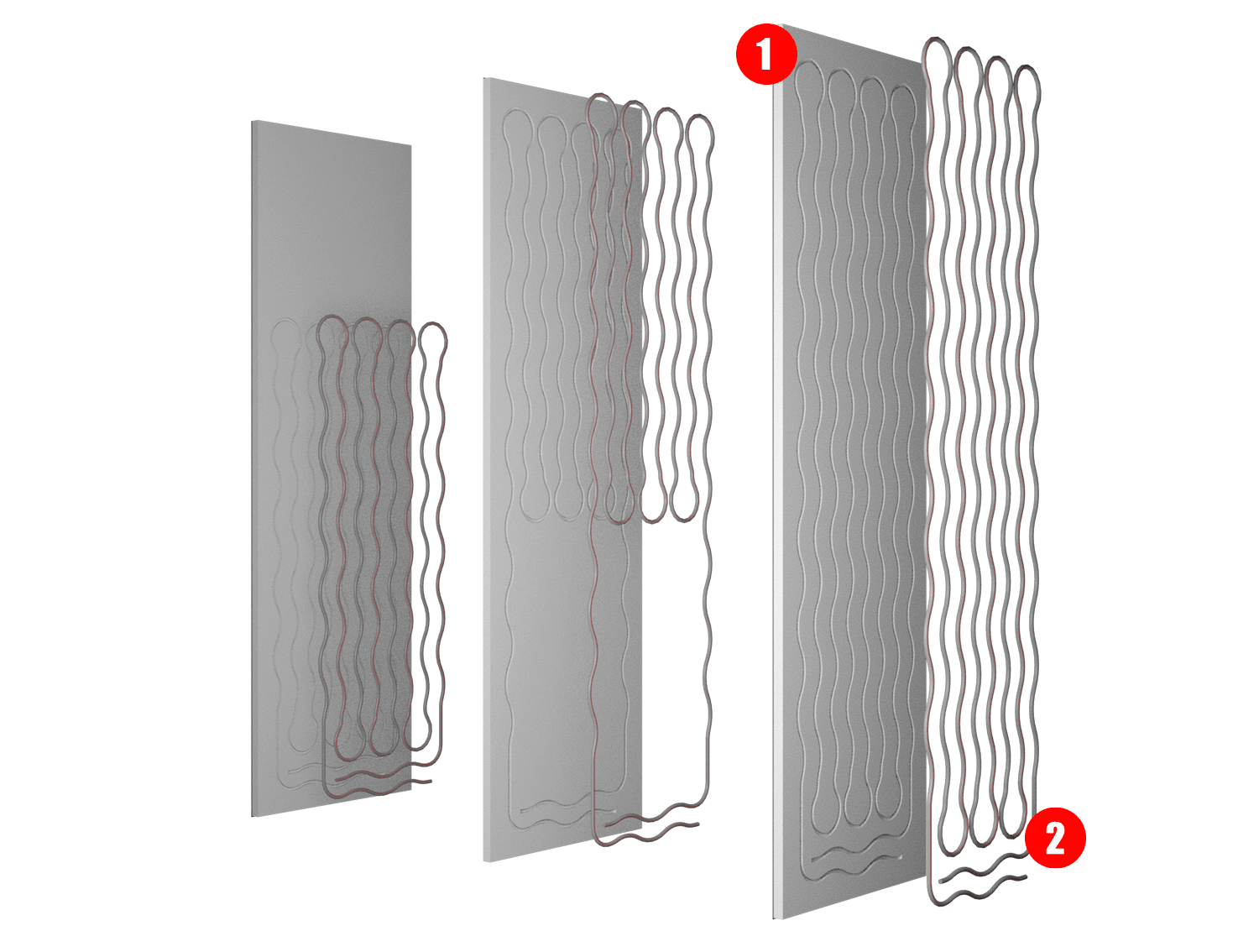

Plasterboard sheet complete with Midix Plus pipe (optional insulation)
- 2
Midix Plus 5-layer pipe
why choose this system
Suitable for any environmental configuration
The Leonardo radiant wall is ideal for rooms that require special heating requirements, such as bathrooms or stairwells. The pipe coils are positioned on the plasterboard panels at different heights, rendering the system highly versatile and adaptable with respect to the configuration and requirements of the wall to be covered.
DESIGN PLUS
Large exchange surface between pipe and plasterboard

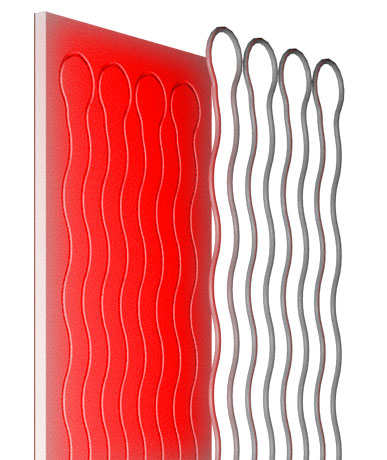

The inserted MidiX tubing is laid out in a serpentine pattern in order to maximise the exchange surface between the tubing and plasterboard.
Maximum tightness of fittings over time

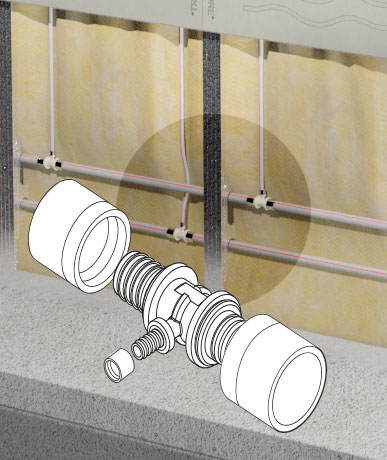

The use of special O-ring-less fittings for the 10x1.3 mm pipe allows for maximum tightness over time and reduced pressure losses.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
