Eurosuper, Radiant floor system with the best insulation

Surface Floor
Type Single family residence, Multi-family residence, Services

Polyurethane insulation guaranteed over time
Available in various thicknesses

Eurosuper is an underfloor heating and cooling system that provides excellent energy results, maximizes system performance, and ensures excellent downward insulation while minimizing dispersion. The insulation slab reduces downward dispersion to a minimum, providing high energy savings.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Underfloor heating and cooling system consisting of a 6-layer flat insulating panel comprising a sheet of polyurethane foam sandwiched between two aluminum sheets, a pipe-retaining grid, protected on the top by a plastic film and on the bottom by polyethylene sheathing; the pipe-coupling system uses special polyamide tacker clips. The system is available in 4 different thicknesses that can be selected depending on the installation condition (minimum thermal resistance according to UNI EN 1264). Depending on the heat requirement, 18 mm or 20 mm external diameter piping may be used, with spacing of 7.5 cm to 20 cm. The insulating panel is covered with a plastic film (required by UNI EN 1264-4), marked with guidelines spaced 50 mm apart, which are useful for laying the piping at the correct pitch, in accordance with the design. The system also includes a detachable, self-adhesive backed double perimeter strip consisting of closed-cell polyethylene foam of the appropriate height for the chosen insulation; reaction to fire (EPS insulation) Class E (EN 13501-1).

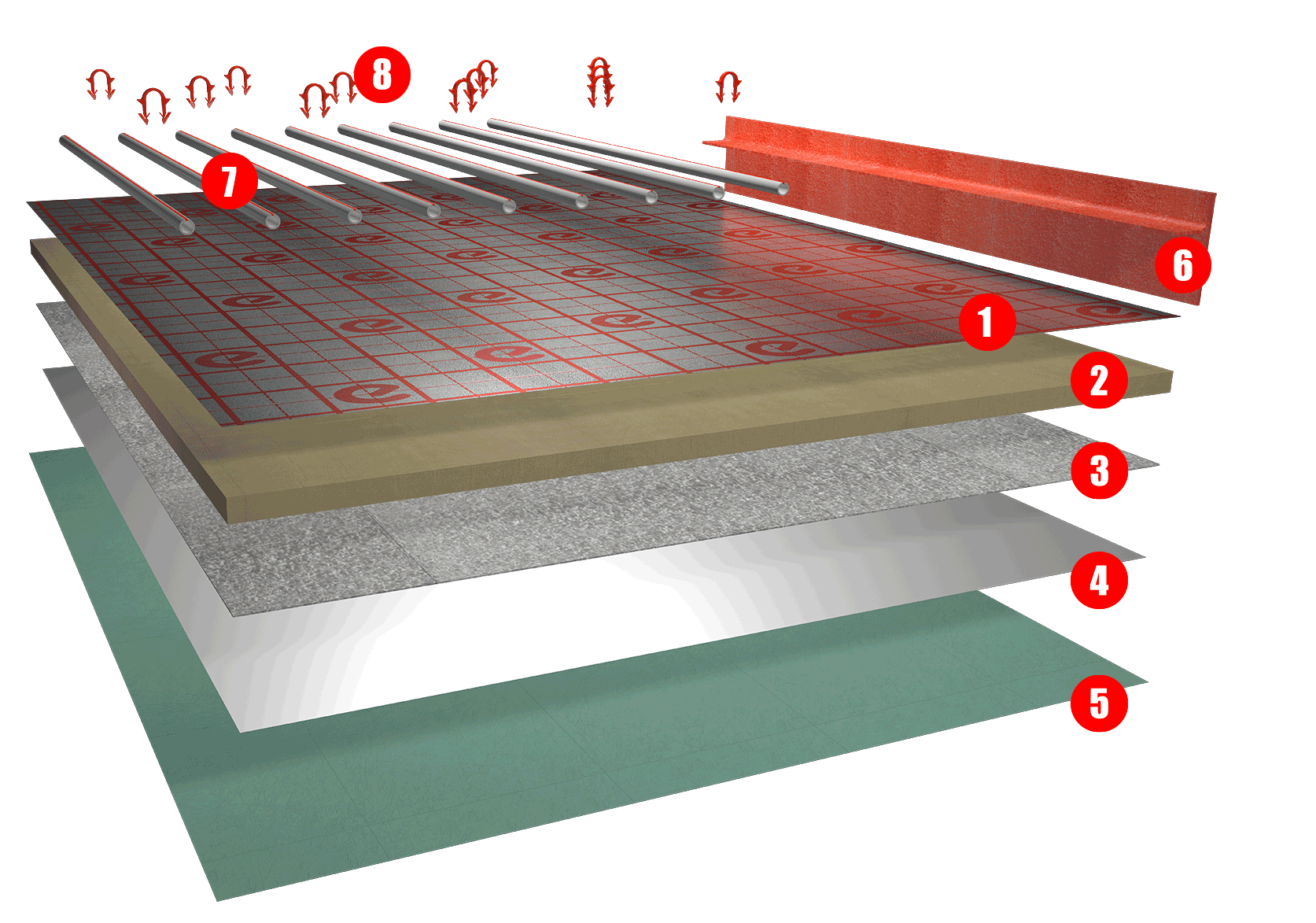

1
Aluminium foil with mesh
2
Polyurethane insulation
3
Polyethylene 2 mm
4
Aluminium foil
5
PE sheet
6
Perimeter strip
7
idix Plus 5-layer pipe
8
Clip tacker

why choose this system

Efficient performance with reduced consumption

The Eurosuper radiant system operates at low temperatures and provides efficient performance with reduced operating consumption. The panel is constructed using the insulation material par excellence: polyurethane with double aluminum. Laying the piping on flat slabs reduces the contact points of the piping with the insulation panel to a minimum.

DESIGN PLUS

With Eurosuper you can live in ‘A’ class

La speciale retina posizionata tra il foglio di alluminio e l’isolante in poliuretano permette di avere la massima tenuta della clip alla trazione garantendo la corretta aderenza della tubazione al pannello.

Perfect insulation

Polyurethane is the best insulator that eliminates downward heat loss.
Thanks to the rebating along the edges of the panel, thermal bridges are eliminated.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
