Euroslim, Radiant floor system with dry screed: low thickness, maximum flexibility

Surface Floor
Type Single family residence, Multi-family residence, Services

Galvanized steel diffusers
Reduced weight on the floor
Special interlocking that eliminates thermal bridges

The Euroslim radiant slab is ideal in dry work and was developed specifically for renovation, or other types of work, in buildings where the requested heights are not feasible and it is necessary to lay a dry screed to reduce the duration of the construction site. Dry slabs can be applied on the Euroslim radiant floor slab in support of the floor covering. Galvanized steel diffusers promote heat exchange between the pipe and the surface, while the special interlocking system eliminates the formation of thermal bridges.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

The radiant floor slab is a low-thickness underfloor heating and cooling system that consists of an expanded polystyrene insulation board shaped so that the piping can be inserted into the corresponding grooves, above which special steel diffusers have been positioned. When the hot water passes through the piping, the heat spreads over the surface via the diffuser and is transmitted to the screed or steel slab laid above. The piping may be laid with different spacing between pipes so as to adapt to the specific heat demand requirements. The shaped insulation panel permits excellent system efficiency, even with reduced thicknesses; while the high compressive strength (200 kPa at 10% deflection) ensures high panel load resistance. The panel can be complemented by a dry screed, a self-levelling screed or a double steel slab. The system is compatible with all floor coverings (with maximum thermal resistance of 0.15 m2K/W as per UNI EN 1264) subject to verification with the floor manufacturer (glue, formats, etc.).

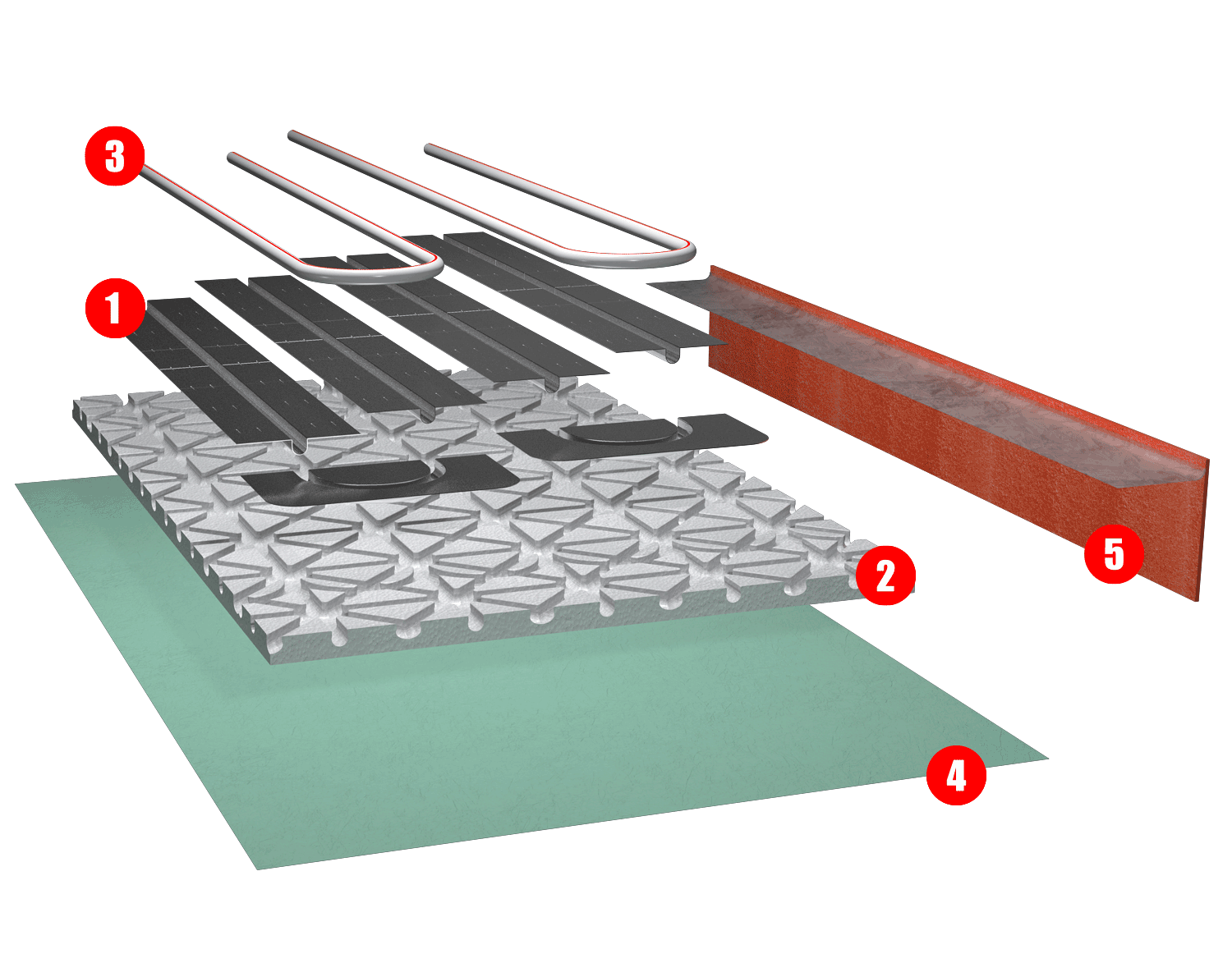

1
Galvanised steel slats for heat distribution
2
EPS plate
3
Midix Plus 5-layer pipe
4
PE sheet
5
Perimeter strip

why choose this system

Even surface heat distribution

The right degree of environmental comfort is ensured by the special galvanized steel louvers, which distribute the heat from the MidiX pipe evenly through the entire floor.

DESIGN PLUS

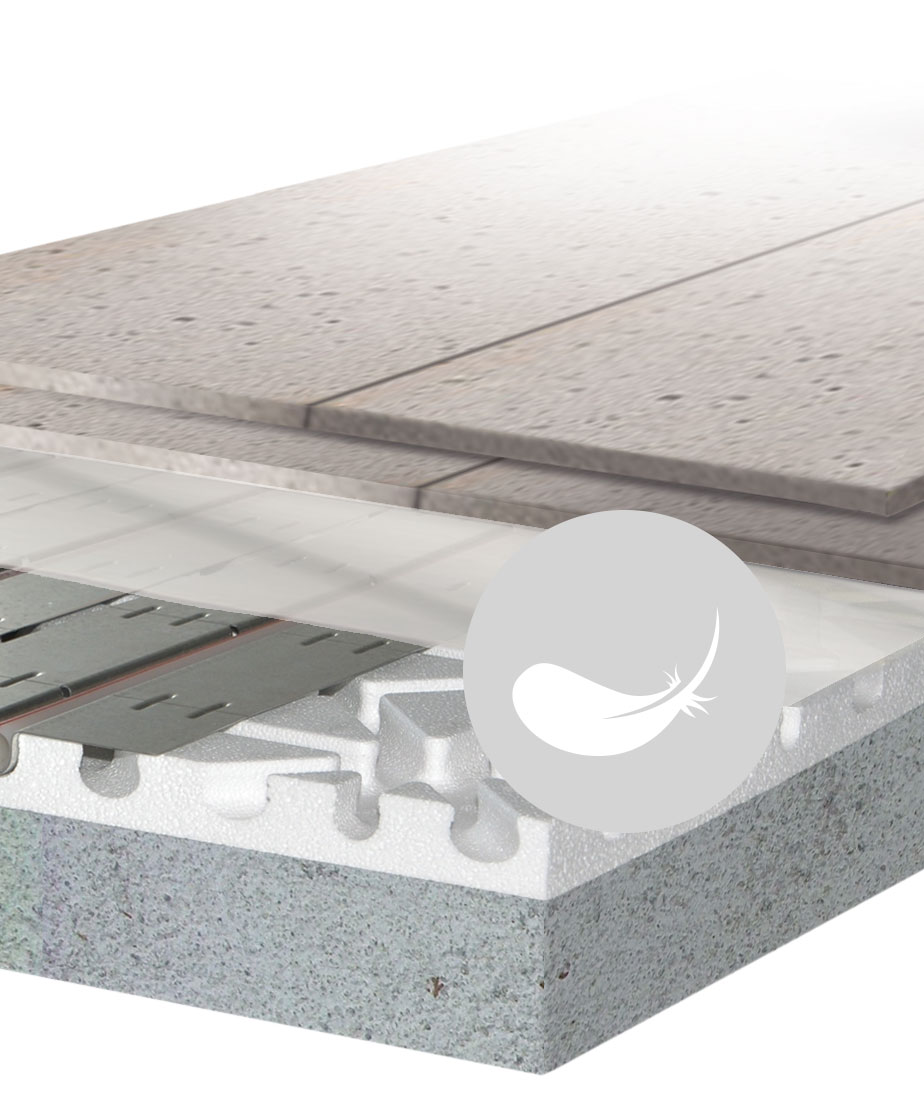

Reduced weight on the floor

Lightweight and versatile, with its low weight on the floor (18 mm fibre plaster, weight 32 kg/m2), the Euroslim underfloor radiant system is ideal for renovations and loft applications requiring limited loads.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
