Europlus-ten, Radiant floor system in just 10 mm EPS

Surface Floor
Type Single family residence, Multi-family residence, Services

Self-adhesive flap for maximum plate joining speed
Increased clip tensile strength due to aluminized multilayer sheathing
Patented clip anchoring system in only 10mm of EPS
Self-adhesive backing with maximum adherence to the screed or other insulation

Europlus-ten is the radiant floor heating and cooling system that can be laid on a 10 mm EPS slab. The patented clip attachment system ensures the pipe remains firmly anchored to the insulation. Thanks to the self-bonding adhesive backing, it is possible to attach the EPS slab to the floor slab without it becoming detached, or ensure it adheres perfectly to other types of underlying insulation such as EPS, XPS, fiberglass.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Underfloor heating and cooling system consisting of a flat expanded polystyrene insulation panel and a pipe attachment system with special, patented tacker clips. The thickness of the panel is 10 mm and is therefore specific for cases where the need is to reduce thickness. Depending on the heat requirement, 12 mm to 15 mm external diameter piping may be used, with spacing from 7.5 cm to 20 cm. The panel has adhesive film on the underside covered with a sheet of paper so that it can be glued to floor or other suitable insulation materials, thus facilitating installation. The insulation board is made of expanded polystyrene covered with an aluminized multilayer sheathing, marked with guidelines spaced 50 mm apart, which are useful for laying the piping at the correct pitch. The system also includes an 80 mm thick detachable, self-adhesive backed double perimeter strip of closed-cell polyethylene foam; reaction to fire (EPS insulation) Class E (EN 13501-1)..

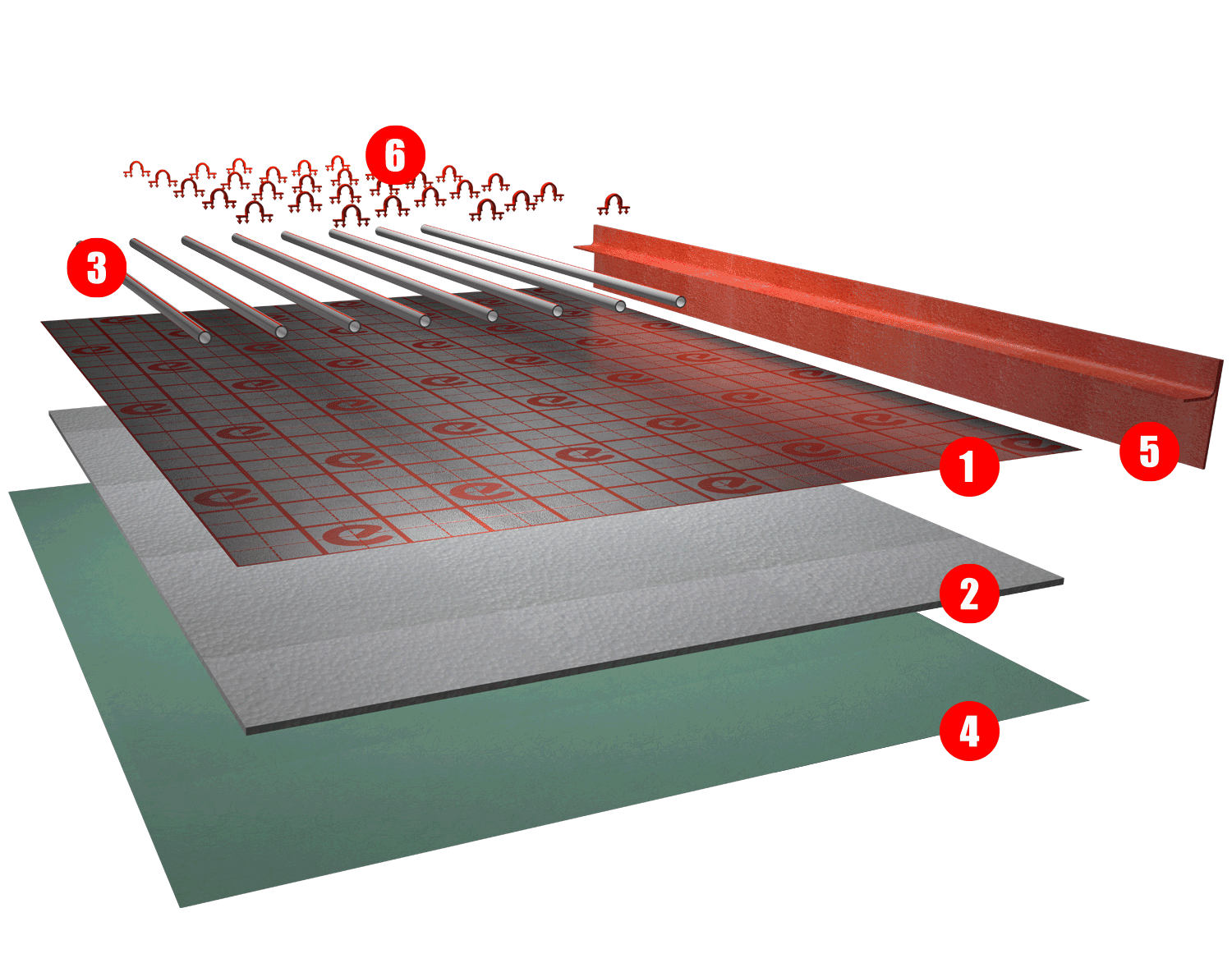

1
Aluminium foil with mesh
2
EPS plate
3
Midix Plus 5-layer pipe
4
PE sheet
5
Perimeter strip
6
Clip tacker

why choose this system

CERTIFIED RADIANT SYSTEM - 35 MM THICKNESS

The Europlus-Ten plate system may be used together with 15x1.5 mm MidiX Plus piping and Knauf Autolivellina NE 425 to realise a radiant system that is certified for Qk concentrated vertical loads by the Elletipi s.r.l. laboratory. The Euoplus-Ten system is laid in 35 mm thick layers.

DESIGN PLUS

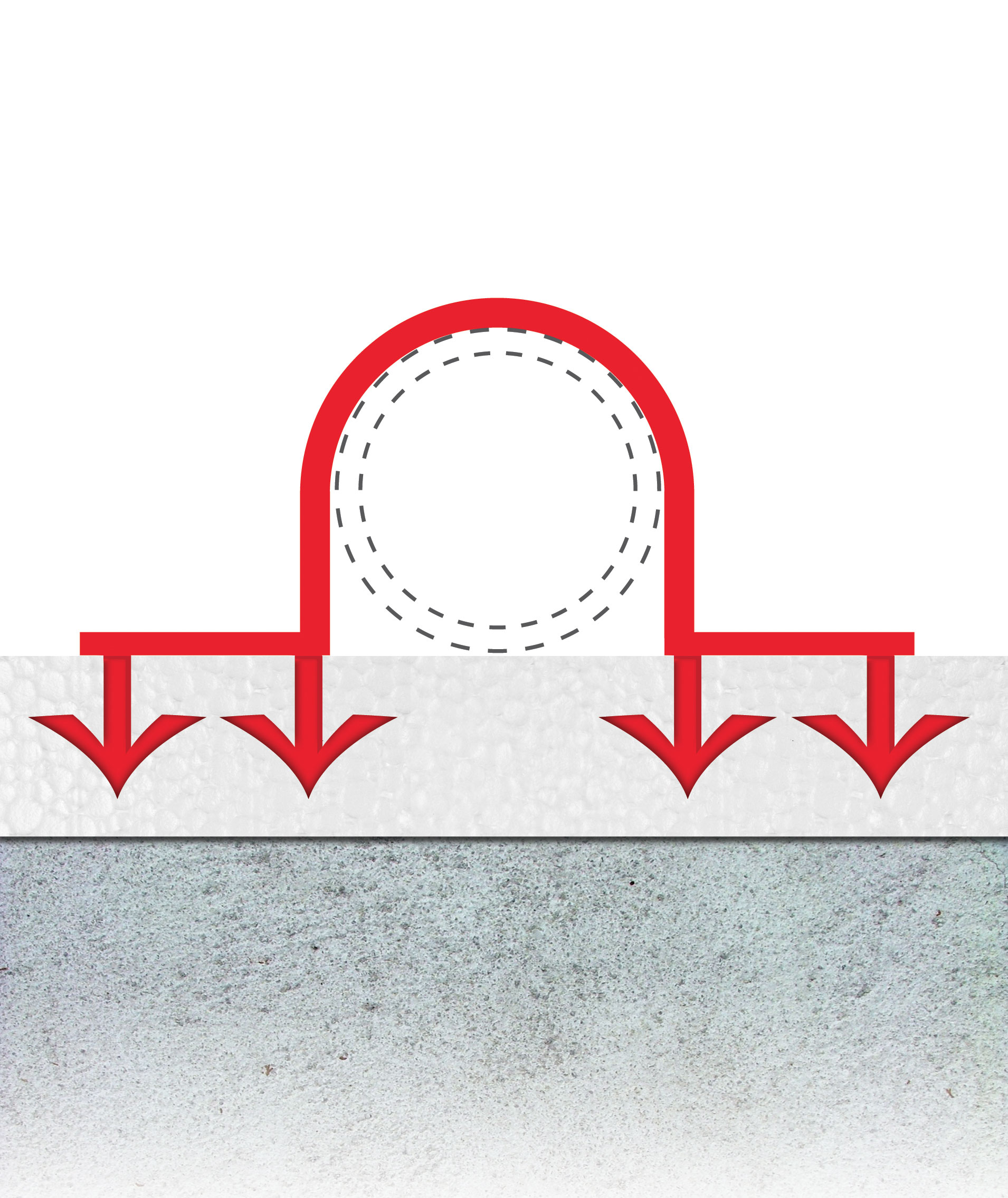

Special high-strength clip

The clip of the Europlus-ten system is specially designed for maximum hold on 10 mm thick insulation.

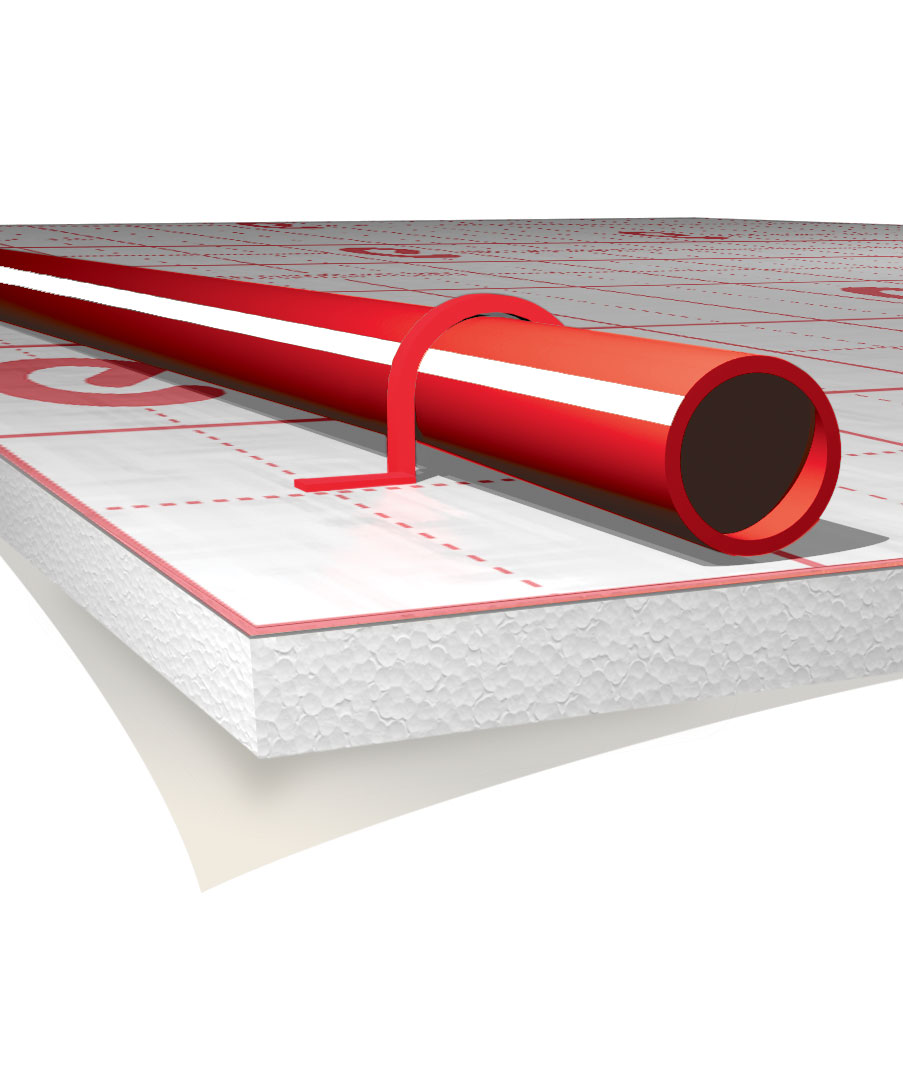

Self-bonding backing

The self-bonding backing gives the EPS sheet the possibility of being permanently fixed to the screed or coupled with another type of insulation.

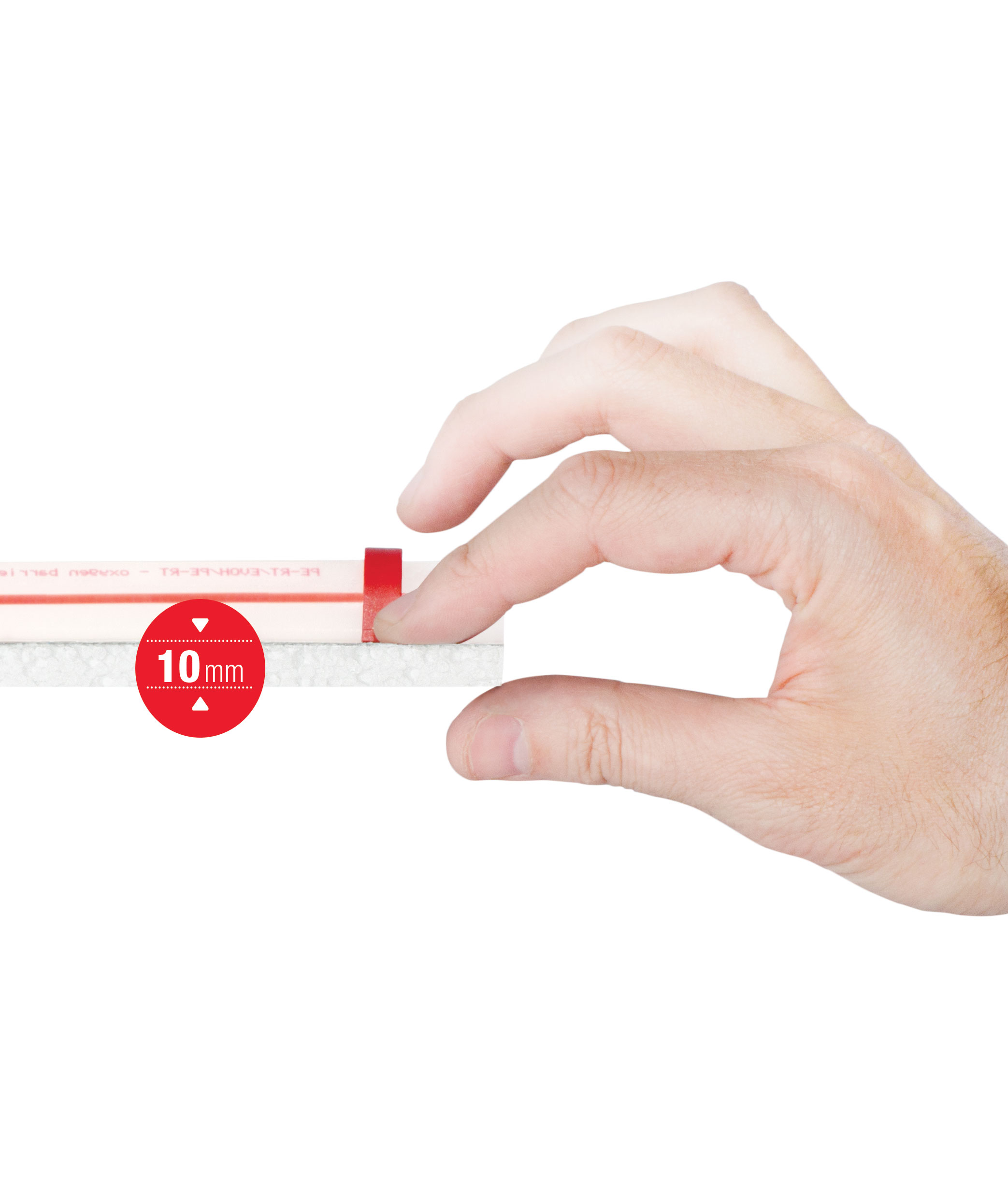

Comfort in 10 mm EPS thickness

Due to its low thickness of 10 mm, the europlus-ten system is suitable in all cases where a low thickness is required without losing the insulating capacity of the EPS board.

L'isolamento per ogni caso

Il foglio adesivo conferisce alla lastra in EPS la possibilità di essere fissata stabilmente sul massetto o accoppiata ad un altra tipologia di isolante.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
