Europlus-fast, A radiant floor system that can be installed without clips
- Surface Floor
- Type Single family residence, Multi-family residence, Services
Maximum adherence to the slab without clips
Quick and easy laying, with easy repositioning of the pipe
Maximum system performance

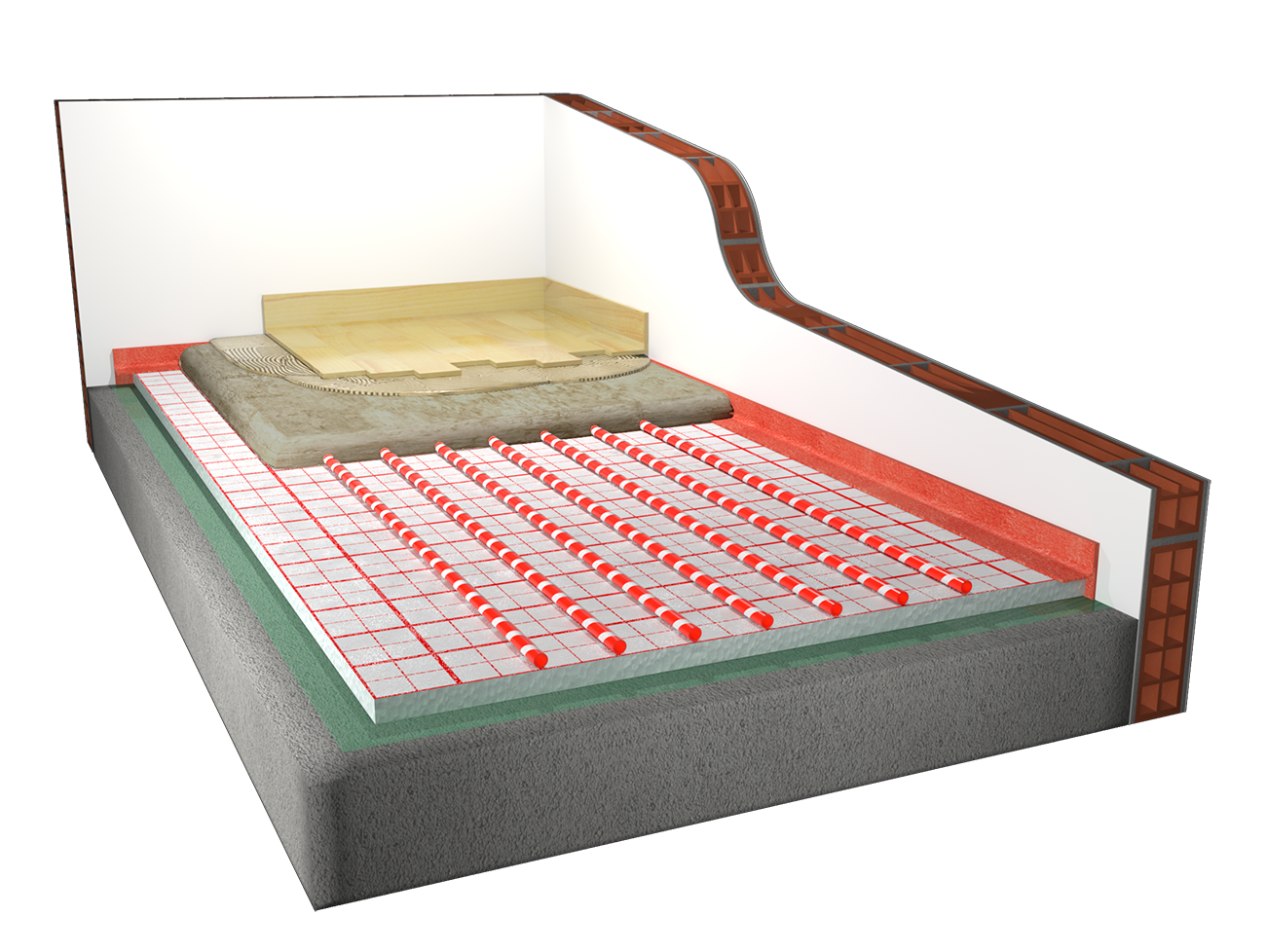

The Europlus-Fast radiant floor heating and cooling system guarantees quick, safe installation without the use of tools. Thanks to the panel coupled at the top with a special Velcro sheath, it allows the pipe, which is equipped with a spiral strip with micro hooks, to be perfectly anchored without the use of clips. The high flexibility of the special Midix-plus Fast 15X1.5 pipe guarantees the seal remains stable over time. The flat plate system maximises the yield of the system and ensures good downward insulation.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|
TECHNICAL DATA SHEET
Europlus-Fast expanded polystyrene insulating panel, protected on top by a Velcro sheathing, which is marked with 50 mm spaced guidelines to assist when laying of 15 mm external diameter piping; declared thermal conductivity ?D equivalent to 0.034 W/m-K (UNI EN 13163, UNI EN 12667); supplied in rolls for 20/30 mm thickness or in 45 mm thick plates; the upper panel sheathing protrudes by ~20 mm on the long side, while the opposite side features an adhesive strip to allow coupling and cover the slab joints during laying. Reaction to fire (EPS insulation): class E (EN13501-1).

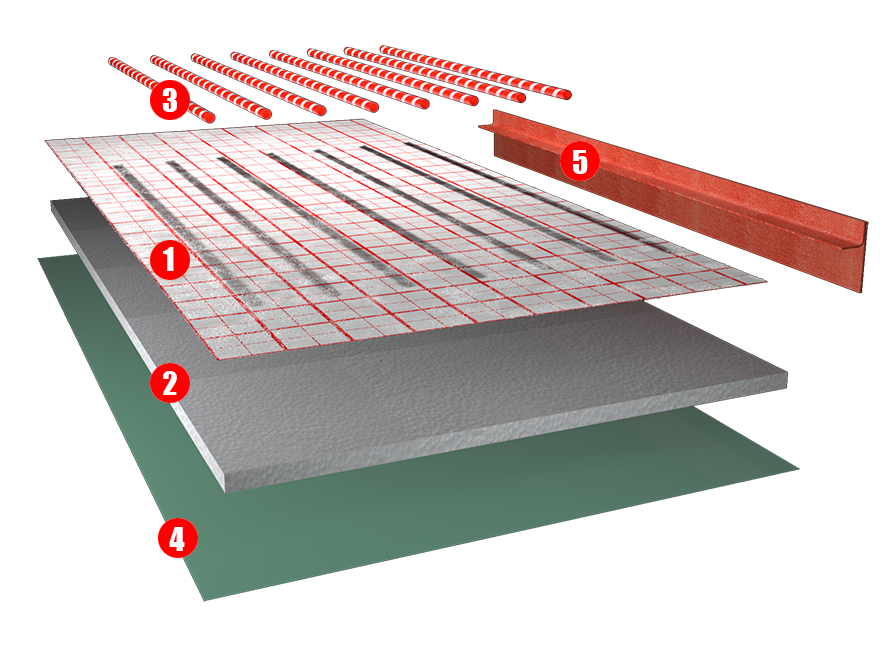

- 1
Velcro sheathing
- 2
EPS plate
- 3
Midix Plus 5-layer pipe equipped with a spiral strip with micro hooks
- 4
PE sheet
- 5
Perimeter strip
why choose this system

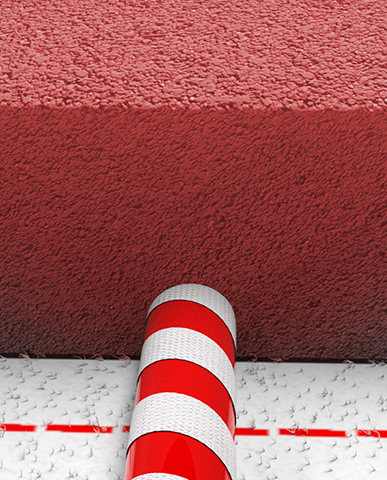

Maximum adhesion to the plate without using clips
Fast, safe system installation thanks to the EPS panel with special Velcro top sheathing that guarantees perfect anchoring of the piping, which equipped with a spiral strip with micro hooks.
DESIGN PLUS
Maximum system performance
The full contact of the pipe with the screed maximises the performance of the system in both heating and cooling. The EPS insulation provides good downward insulation.

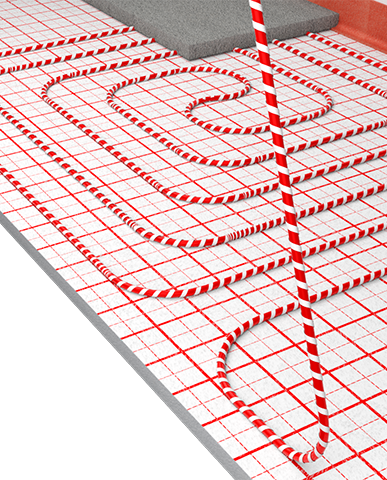

Quick and easy installation with repositionable pipe
The clipless fastening system and the flexibility of the MidiX Plus pipe allow quick and easy repositioning of the pipe on the slab.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
compose your system
Can't find the solution for you in the bundles?
Create your own system by selecting the components you prefer.
