Euroflex TF Plus, The resistant thermoformed system.
- Surface Floor
- Type Single family residence, Multi-family residence, Services

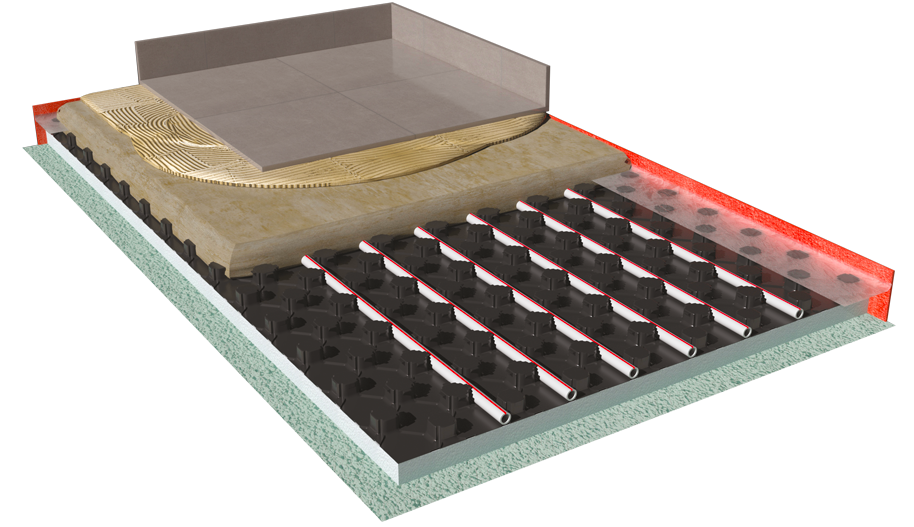

The Euroflex TF Plus radiant floor heating and cooling system is characterised by its robustness and high resistance to deformation.The contact of the pipe with the screed is guaranteed by the special knob; boards are designed to be able to use different diameters, making the system incredibly versatile.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|
TECHNICAL DATA SHEET
Floor heating and cooling system with a preformed polystyrene board. The system includes 4 different thicknesses that can be chosen based on the installation condition. Depending on the heat requirement, a pipe with an external diameter of 14 mm to 18 mm and multiple spacings of 5 cm can be used. The shape of the knob has been optimised to maximise the contact area of the pipe with the screed, increase the performance of the system, allow for clipless fixing and improve performance against trampling damage. The new knob shape has increased the amount of material per pack. The panel is protected at the top by a thermoformed, waterproof PS sheathing (as required by UNI EN 1264-4) 0.6 mm thick, which gives the insulating panel and its knobs a mechanical resistance that prevents deformations on site. The system includes a closed cell polyethylene foam perimeter strip with a polyethylene sheet of the appropriate height for the chosen insulation, which can be lifted and has a self-adhesive strip on the back at full height; reaction to fire (EPS insulation) class E (EN 13501-1).

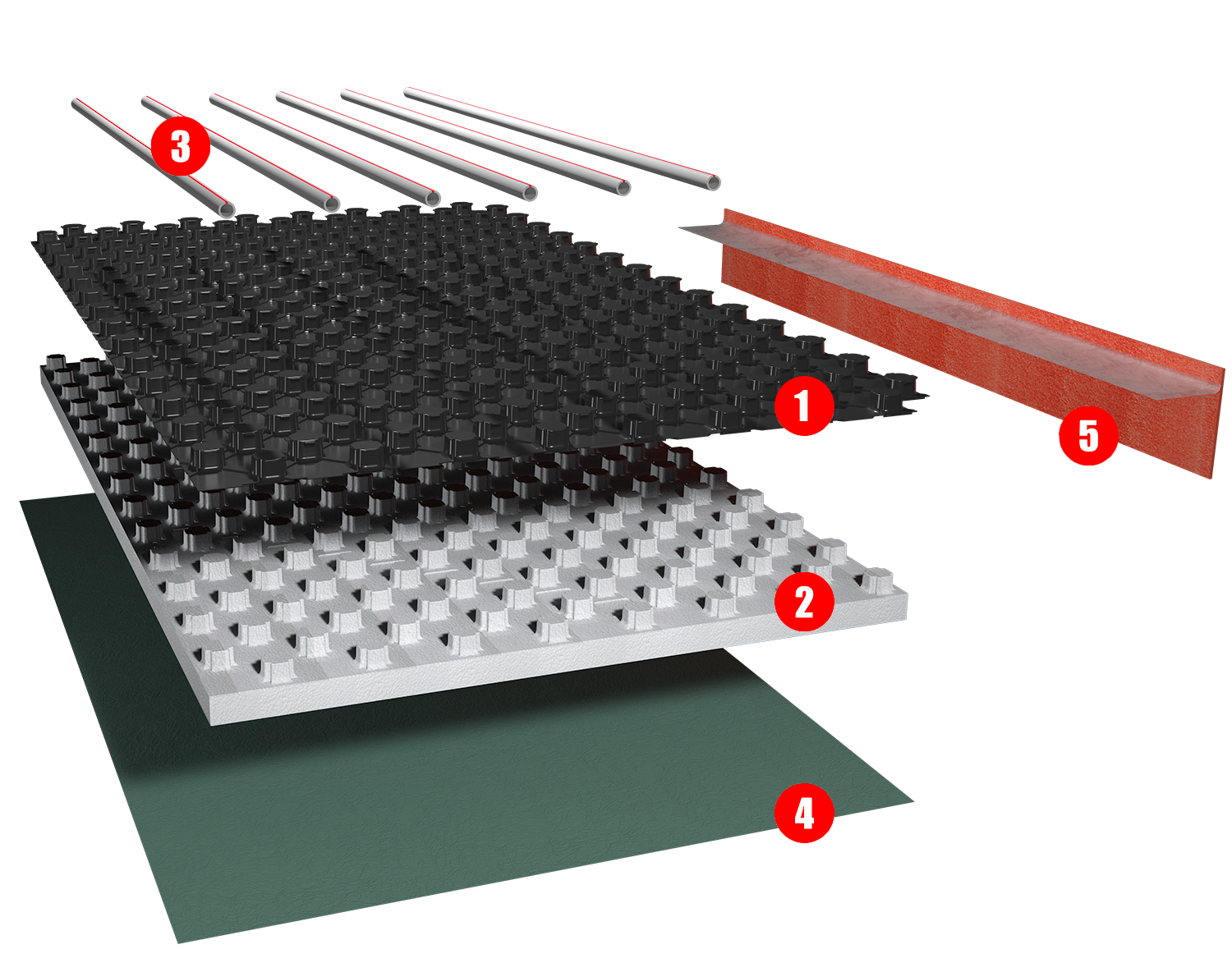

- 1
Preformed PS sheet
- 2
EPS plate
- 3
Midix 5-layer pipe
- 4
PE sheet
- 5
Perimeter strip
why choose this system
Knob mechanical strength
The upper PS sheath, obtained by thermoforming, gives the knobs an unparalleled mechanical strength.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
