Eurobarra, Radiant floor system dedicated to large industrial surfaces
- Surface Floor
- Type Industrial
Ideal for warehouses and halls with great heights
Ideal for warehouses and halls with great heights
Underfloor heating is the most effective and energy-efficient means of heating large warehouses and industrial halls with great heights. The pipework is laid with appropriate spacing according to the thermal requirements of the industrial hall.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|

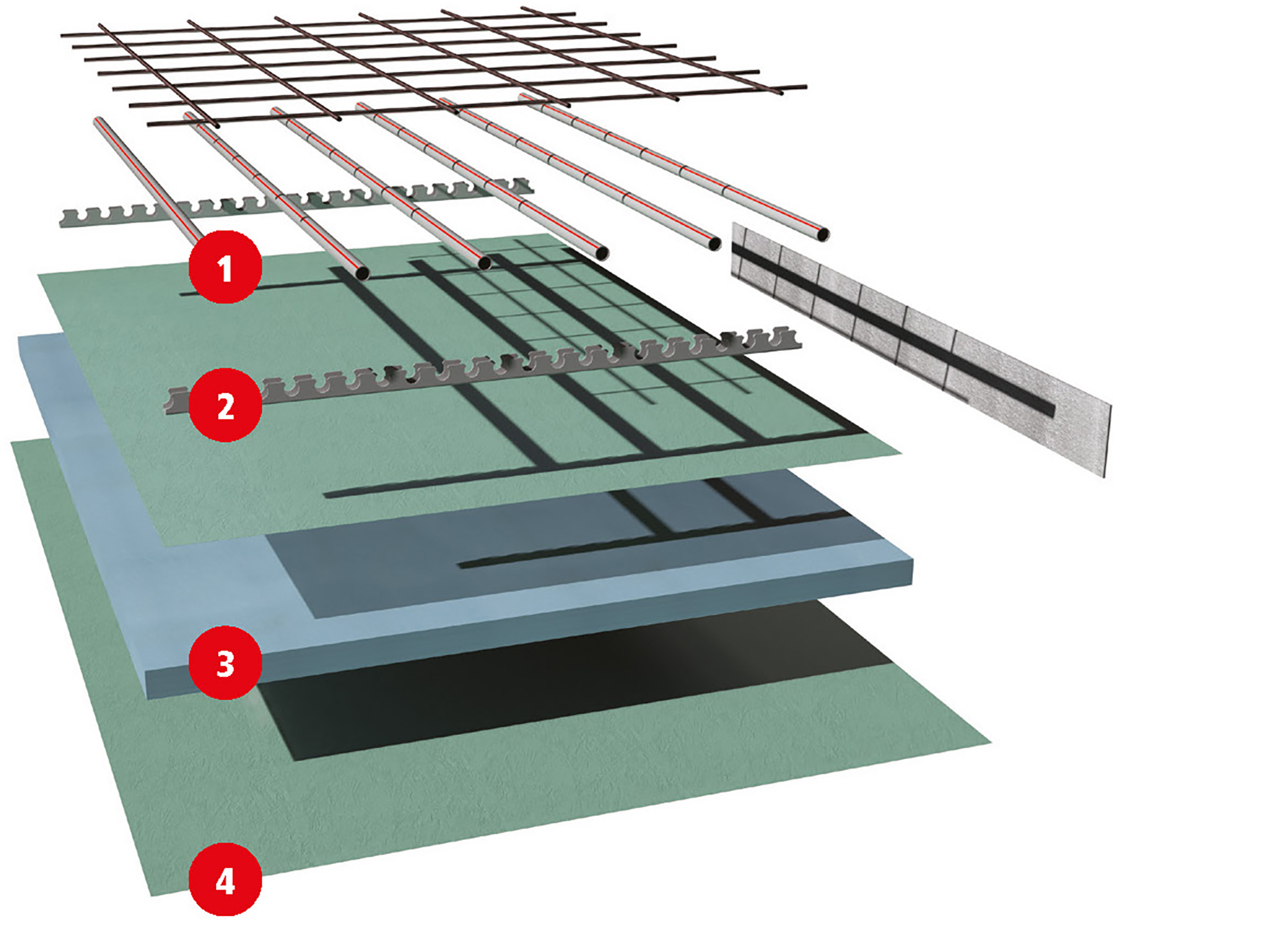

- 1
5-layer Piping MidiX Plus
- 2
U-shaped pipe stop profile
- 3
PE foil
- 4
Insulation (EPS or XPS)
why choose this system
Low thermal inertia

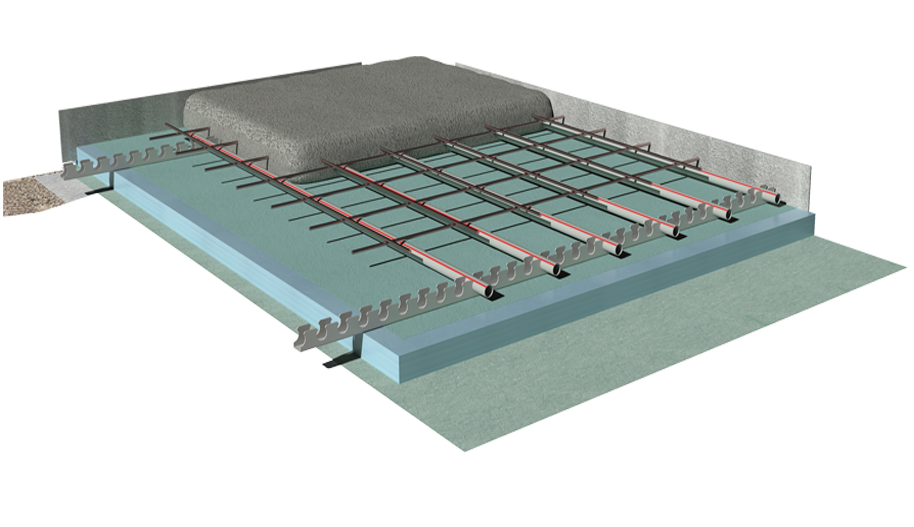

Floor heating is the most energy-efficient means of heating warehouses and sheds with high ceilings. The piping is attached to an electro welded mesh resting on the trusses, so that, by significantly decreasing the thermal resistance, the system can operate at much lower flow temperatures with savings in operation. A floor system with piping placed under the screed would require operating temperatures ~10 K higher.
DESIGN PLUS

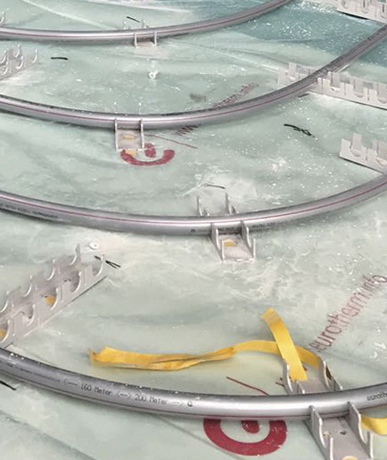

U-shaped stopper
The U-profile allows the Piping to be anchored directly on the insulation, ensuring safe laying of the Screed and avoiding the risk of lifting the Pipe.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
