Leonardo Lux, Easy integration with lighting systems, air vents and other systems

Surface Ceiling
Type Single family residence, Multi-family residence, Services

Adductions inserted into the plate
Central compartment for installation of lights, air vents and other fixtures
WSP Lab certified yields

Leonardo Lux is the innovative radiant ceiling system that satisfies both heating and cooling requirements. The system is compatible and integrable with the Leonardo radiant ceiling range (except Leonardo RF 10 - RF 5.5) and can replace a 5.5 cm pitch Leonardo panel with the same output and flow rate.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

	TECHNICAL COMPARTMENT

Prefinished 15 mm plasterboard panel for ceiling installation coupled with 35 mm of Neopor^® type graphite-sintered expanded polystyrene foam or similar (λ_D=0.030 W/m·K according to EN 13163), complete with 5-layer high-temperature resistant polyethylene PE-RT MidiX Plus type II piping (DIN 16833, ISO 24033, ISO 22391, ISO 21003, EN 1264) with EVOH oxygen barrier in the pipe walls and vapor permeability of less than 0.32 mg/(m²d) at 40°C and 3.6 mg/(m²d) at 80°C (which means it falls within the limits of DIN 4726 and EN 1264-4), class 4 and 5 mechanical strength characteristics at 6 bar (ISO 10508) and an expected service life of 50 years; MidiX Plus 10 x 1.3 mm piping arranged in a serpentine pattern with an optimized path to increase the safety area for fixing and 3.5 cm spacing; to ensure constant product quality, MIDIX PLUS pipe is subject to product and process verification and control by third-party body KIWA N.V., and supplied with KOMO K 86478 and DIN CERTCO 3V399 PE-RT system certification and CE marking through ETA 17-1013; the surface of the panel displays a laser drawing indicating the location of the pipe; piping complete with connection rings; the insulation layer houses a multi-layer PE-RT type II (PE-RT II/AL/PE-RT II) 20 x 2 mm (EN ISO 21003), capped, pre-expanded and complete with rings for hydraulic connection of the panels to the main adduction lines, class 1, 2, 4 and 5 mechanical strength characteristics at 10 bar, it is impermeable to oxygen as per DIN 16836 and meets the requirements of EN ISO 11855 and UNI EN 1264-4, and the hydraulic connections are certified air tight according to EN ISO 21003-5. Smooth finish. Specific gravity in service: ~12.5 kg/m²

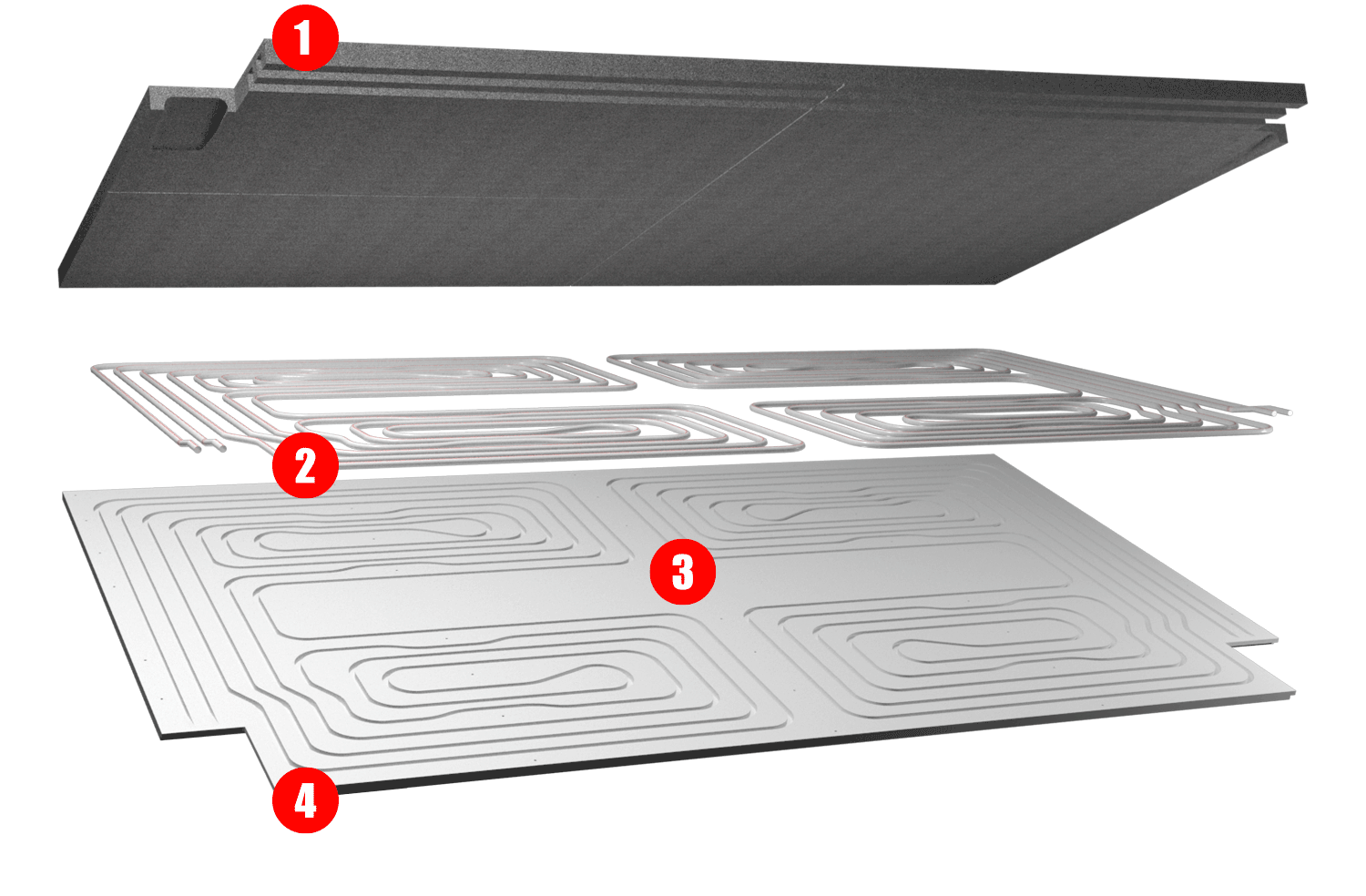

1
Graphite-sintered expanded polystyrene insulation
2
Plasterboard sheet with laser marking pipe safety area
3
Technical compartment for installing lighting, air vents and other installations
4
Midix Plus 5-layer pipe

why choose this system

Prepared for plant housing

Leonardo Lux offers maximum design flexibility as it permits simple, immediate installation of lighting systems, air treatment vents or other types of plant. The plasterboard panel is supplied coupled with a graphite-sintered EPS insulating sheet and is equipped with a 1450x180 mm space in the central area to house the plant engineering.

DESIGN PLUS

LOW THERMAL INERTIA

Thanks to the diameter and thickness of the pipe used (MidiX 10x1.3 mm), the fact the piping is integrated in the plasterboard, which increases the yield by 8% compared to the pipe inserted in the insulation, and the special serpentine geometry, the Leonardo ceiling system with guarantees high yield a very low system thermal inertia.

The adjacent thermographic photographs illustrate a Leonardo system operating in cooling mode at an average water temperature of 18° C. Note how, after just 20 minutes, the system is already operating at full capacity.

Flexible design and installation

The extreme versatility of the Leonardo system can be seen in both design and installation. The panel has been designed with an integrated pipe with two independent circuits. It is therefore possible to cut the plasterboard panel into two exactly mirror-image parts, each equipped with its own pipework.

WSP lab certified system

Heating and cooling efficiencies certified according to EN 14037-5 - EN 14240.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.

Discover more
