High efficiency acoustic ceiling, High-performance sound-absorbing radiant comfort

Surface Ceiling
Type Services

Large active surface area
Double coupled acoustic plate
High cooling performance
Reduction of air pollutants

The acoustic ceiling system consists of two coupled perforated plasterboard panels and 12.5 mm and 10 mm exposed graphite acoustic felt for a total thickness of 22.5 mm. The plasterboard panel is complete with 5-layer polyethylene piping with EVOH oxygen barrier. The MidiX Plus high-temperature resistant polyethylene pipe, with 6 cm spacing, is arranged in a serpentine pattern in the thickness of the top slab. It is ideal for both winter heating and summer cooling.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Radiant ceiling panel consisting of 22.5 mm (12.5 + 10 mm) laminated perforated plasterboard with piping inserted. The two regular circular, regularly perforated slabs (15/30 perforation) are provided with acoustic felt and coupled so that the holes coincide. The composition of the slab (gypsum and zeolite) helps reduce the concentration of indoor air pollutants. The acoustic panel has the piping inserted, with 6 cm spacing in the thickness of the upper slab. The 5-layer Type II MidiX Plus type II high-temperature resistant polyethylene PE-RT piping (DIN 16833, ISO 24033, ISO 22391, ISO 21003, EN 1264) with EVOH oxygen barrier in the pipe wall and vapor permeability of less than 0. 32 mg/(m²d) at 40°C and 3.6 mg/(m²d) at 80°C (within DIN 4726 and EN 1264-4 limits), class 4 and 5 mechanical strength characteristics at 6 bar (ISO 10508) and an expected service life of 50 years; MidiX Plus 10x1.3 mm piping arranged in a serpentine pattern; the surface of the panel is laser marked with the location of possible fixing points; ring length: 38.7 m.

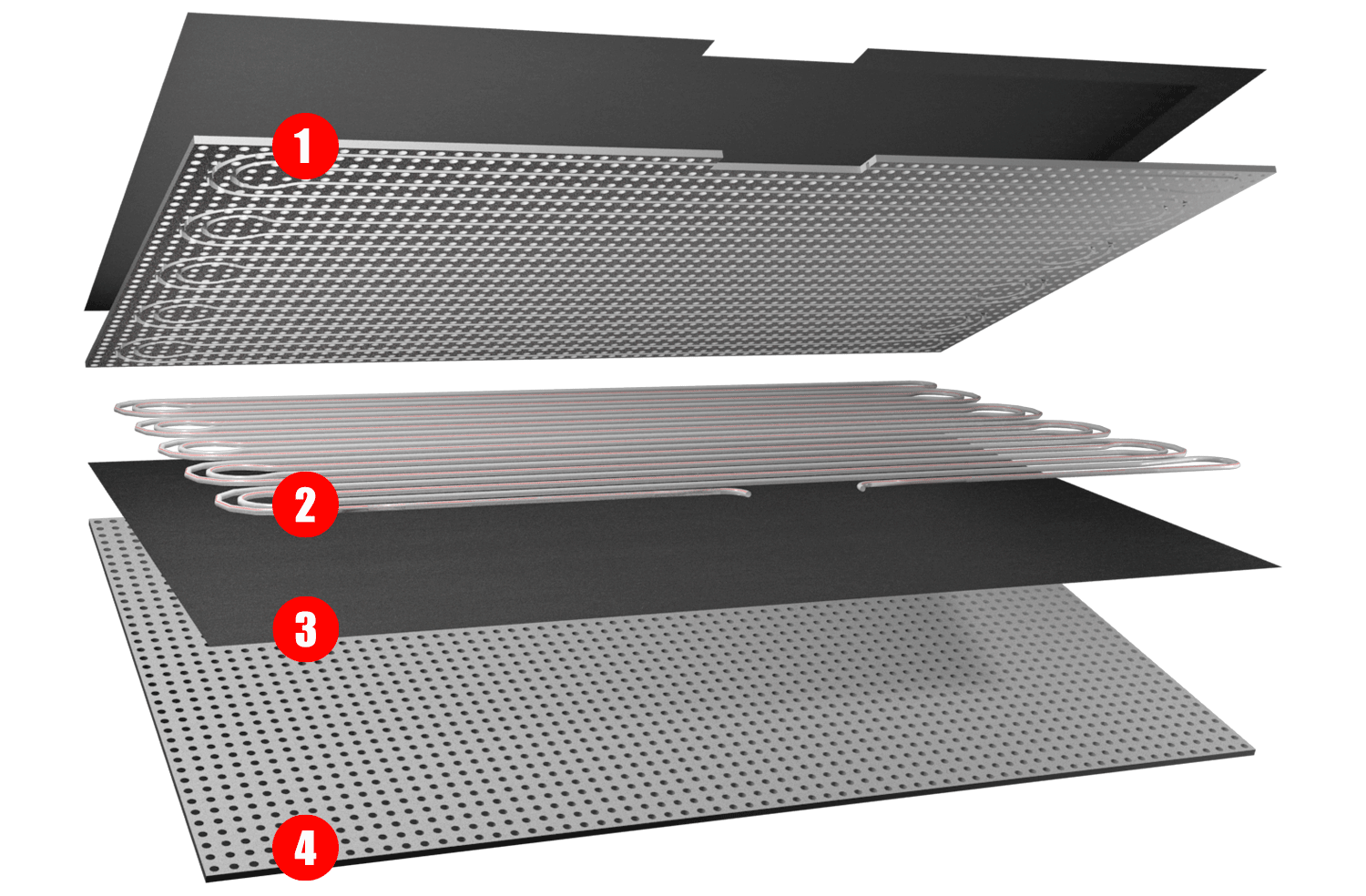

1
Acoustic plasterboard
2
Midix Plus 5-layer pipe
3
Acoustic felt
4
Acoustic plasterboard

why choose this system

Double acoustic sheet

Thanks to the double acoustic plasterboard sheet (one of which in graphite), this system combines the benefits of radiant comfort with high sound absorbing capacity, eliminating ambient reverberation.

DESIGN PLUS

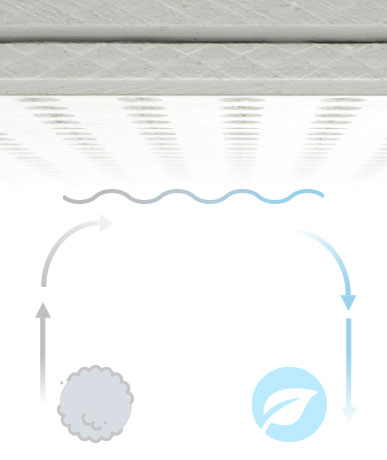

Cleaner air

The slab consists of a core of gypsum and zeolite. Zeolite is a natural rock with a honeycomb-like crystalline structure, characterised by a huge number of pores of varying sizes. Its special cage-like structure enables it to capture odours in quantities equal to 65% of its weight and to develop a positive action on indoor air quality, reducing the concentration of pollutants in rooms with poor ventilation (cigarette smoke, cooking smells, benzene, aromatic hydrocarbons, etc.).

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
