320 DI recessed dehumidifier, Recessed, wall-mounted indoor dehumidification

Dehumidifier 320 DI is a refrigeration cycle unit developed for indoor vertical built-in installations. The dehumidifier is capable of isothermal dehumidification during the summer period, which means that it dehumifies air and returns it to the room at approximately the temperature at which it was extracted. Dehumidification is based on the physical principle that when moist air comes into contact with a sufficiently cold surface, it forms condensation droplets, which are then removed via the dedicated drain unit. In the dehumidifier, in addition to the heat exchangers proper to the refrigeration cycle (evaporator and condenser), the unit includes a hermetic compressor, a post-cooling coil and a low-speed fan for maximum quietness. The unit must be connected to a water chiller circuit and condensate drainage system in order to operate correctly. The wall-mounting frame and wooden grille are not included in delivery but are available as accessories.

Nominal air flow rate: 120 m³/h

Condensation capacity (recirculation): 8.0 l/g

Nominal inlet water temperature: 16°C

Complete with on-board humidistat

Optional wall frame and grid (not included)

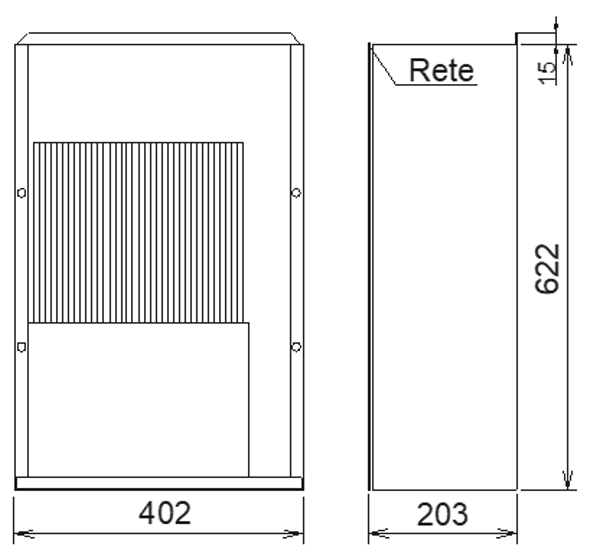

Dimensions and measurements
