Ductable air renewal unit for residential wall or ceiling applications characterised by very high heat recovery efficiency, low power consumption and high aeraulic performance. The expanded polypropylene casing guarantees considerable lightness and is shaped to optimise the aerodynamics of the air circuits inside the unit, so as to minimise noise and pressure drops. The high-efficiency heat recuperator allows efficiencies up to more than 90% and the presence of the bypass makes free cooling / free heating mode possible. The ePM10 50% filters guarantee excellent air filtration and can be easily removed through dedicated flaps. High filtration filters ePM1 70% are available (optional).
The unit is energy class A according to Reg. 1254/2014 and is capable of renewal with an exterior air flow of up to 260 m3/h.
Apartments up to 200 m2
Dimensions: 972 x 655 x 300 mm
Nominal external air flow rate: 260 m3/h.

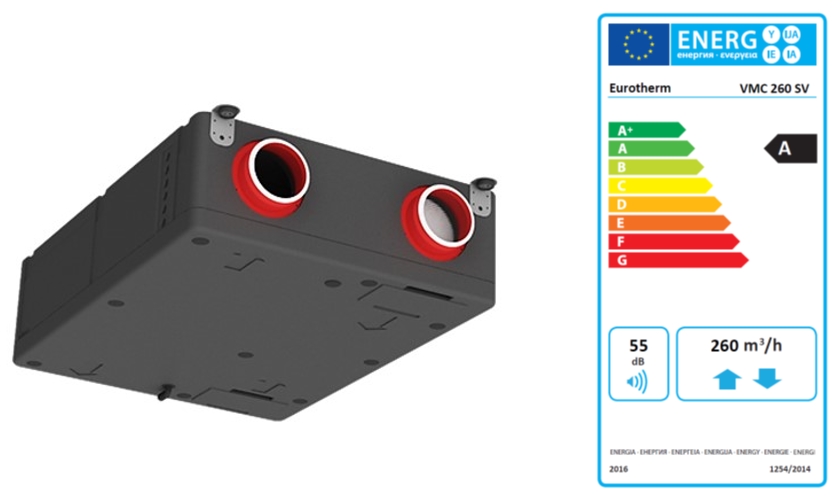

Energy class: A

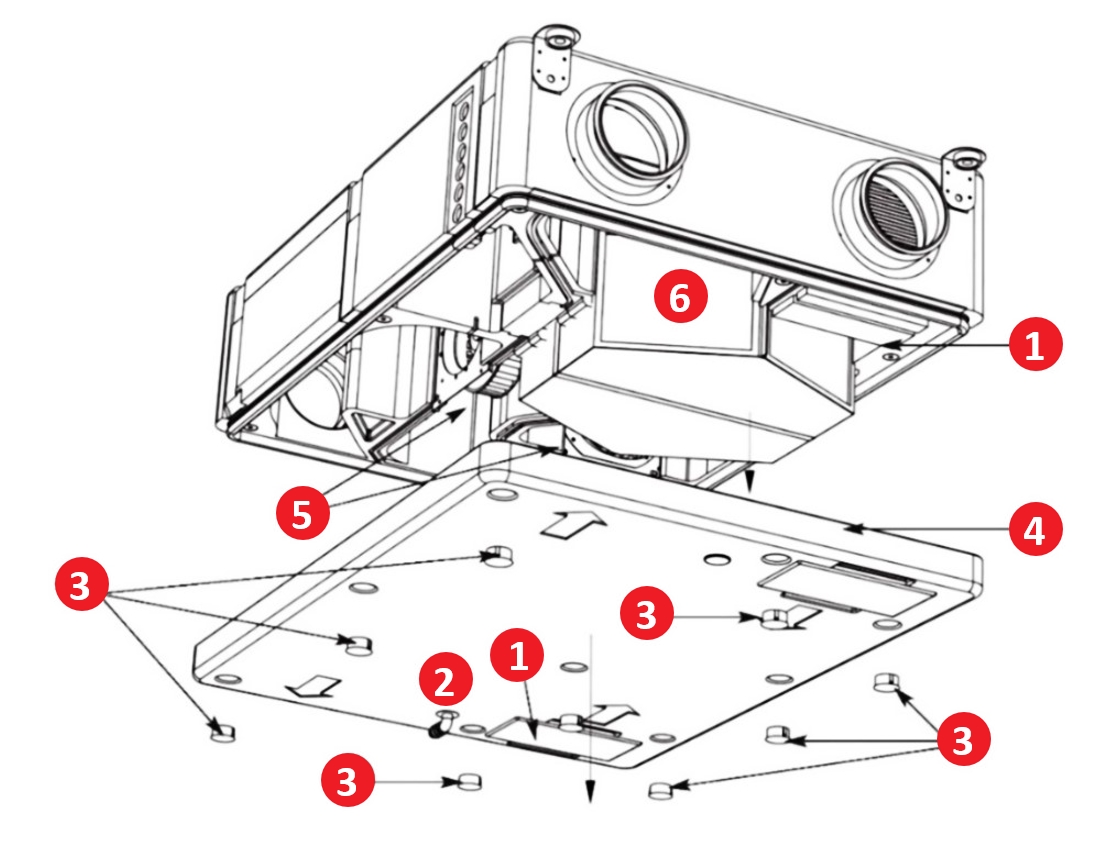

Unit components
1. Air filter and flap
2. Condensate drain
3. Cover caps
4. Pannellatura dell'unità
5. Fans
6. Heat recuperator
Dimensions and measurements
Air flows
