Europlus-silentium, Radiant pavement system designed to provide both climate comfort and acoustic insulation

Surface Floor
Type Single family residence, Multi-family residence, Services

Suitable for every area of application
Footfall noise attenuation of 37 dB

Europlus-Silentium is the radiant underfloor heating and cooling system that is perfectly in line with the growing needs of contractors, who are increasingly thinking in terms of global comfort.In fact, Europlus-Silentium combines record-breaking acoustic insulation performance with the highest standards of climatic comfort and energy efficiency guaranteed by the radiant system. Together, these advantages guarantee the best possible results in every area of application, residential and otherwise.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Underfloor heating and cooling system consisting of a flat, graphite-sintered expanded polystyrene insulating panel overlying a sheath based on SBR fibers and rubber granules, and a pipe attachment system with special tacker clips. The 32-mm-thick panel (24 mm + 8 mm), provides adequate thermal resistance when installed above heated environments (case I UNI EN 1264). Depending on the heat requirement, 18 mm or 20 mm external diameter piping may be used, with spacing of 7.5 cm to 20 cm. The insulation panel is covered with an aluminized multilayer sheathing, marked with guidelines spaced 50 mm apart, which are useful for laying the piping at the correct pitch. The panel guarantees a footfall sound pressure level attenuation evaluation index ΔLw of greater than or equal to 37 dB according to UNI EN ISO 717-2. To optimise continuity between the slabs and maintain acoustic performance, it is also possible to use silentium granulate infill. The system also includes a detachable, self-adhesive backed double perimeter strip consisting of closed-cell polyethylene foam of the appropriate height for the chosen insulation; reaction to fire (EPS insulation) Class E (EN 13501-1).

Bare floor Floating parquet

Screed Ceramic

1
Aluminized multilayer sheathing
2
EPS sintered with graphite
3
Rubber layer
4
PE sheet
5
Midix Plus 5-layer pipe
6
Clip tacker
7
Perimeter strip

why choose this system

Reduced footfall noise up to -37 decibels

The sandwich insulation panel consists of graphite-sintered expanded polystyrene coupled with a rubber-based sheathing. The entire system, complete with pressure piping, perimeter strip and any other accessories necessary for correct installation, has been laboratory tested under the strict control of the Department of Technical Physics DFT of the University of Padua. download data sheet

DESIGN PLUS

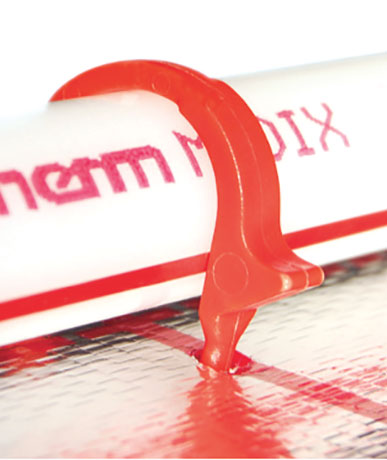

More tensile strength of the clip

The aluminised multilayer sheath, allows maximum adherence of the pipe, thus fulfilling the design requirements of UNI 1264-4.

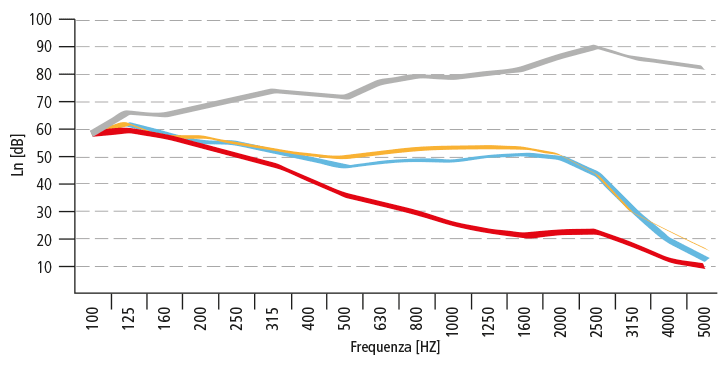

Certified acoustics -37db

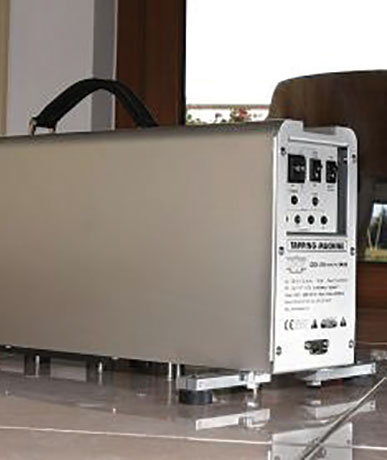

The entire system was laboratory tested according to UNI EN ISO 140-6 on a 20+4 cm hollow core slab under the control of the DFT Department of Technical Physics of the University of Padua. In this way it was possible, on the basis of the measured experimental values, to provide evaluation indices ΔLw and Ln,w according to UNI EN ISO 717-2 that take into account the real application and the influence of a ‘difficult’ slab such as the brick floor, which, due to its non-homogeneous constitution, is not subject to the conditions of use of the UNI EN 12364-2 soundproofing prediction formulas.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
