Europlus-flex, Radiant floor system offering high performance and an excellent cost-benefit ratio
- Surface Floor
- Type Single family residence, Multi-family residence, Services
Self-adhesive flap for maximum plate joining speed
Increased clip tensile strength due to aluminized multilayer sheathing
Certified EPS 150 kPa
The Europlus-flex radiant floor heating and cooling system guarantees excellent energy results, maximizes system performance and provides good downward insulation.The insulation panel consists of expanded polystyrene coupled with a polyethylene and aluminum sheet; laying the piping on flat board reduces the contact points between slab and panel.
.jpg) | SMART RADIANTThe smart and easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. The radiant system has never been so smart. |
|---|
TECHNICAL DATA SHEET
Underfloor heating and cooling system consisting of a Europlus-flex expanded polystyrene insulation panel, protected by an upper aluminized multilayer sheathing, which is marked with guidelines for laying pipe having an external diameter of 16 mm to 17 mm at a distance of 50 mm from each other; declared thermal conductivity λD equal to 0.034 W/m·K (UNI EN 13163, UNI EN 12667); supplied in rolls for 20/30 mm thicknesses or in plates for 45 mm thickness; the upper sheath protrudes by ~20 mm so as to cover the plate coupling joints during installation; reaction to fire (EPS insulation) Class E (EN 13501-1).
- 1
Aluminium foil with mesh
- 2
EPS plate
- 3
Midix Plus 5-layer pipe
- 4
PE sheet
- 5
Perimeter strip
- 6
Clip tacker
why choose this system
Quality in installation
EPS insulation certified at a compressive strength of 150 Kpa
DESIGN PLUS

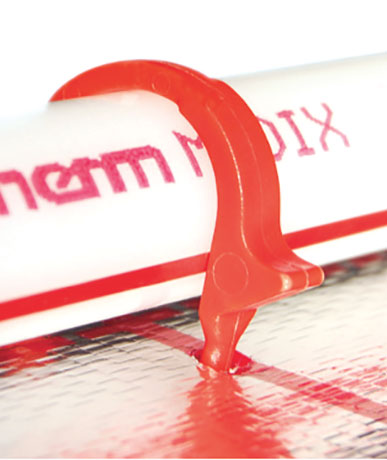

More tensile strength of the clip
The aluminised multilayer sheath, allows maximum adherence of the pipe, thus fulfilling the design requirements of UNI 1264-4.

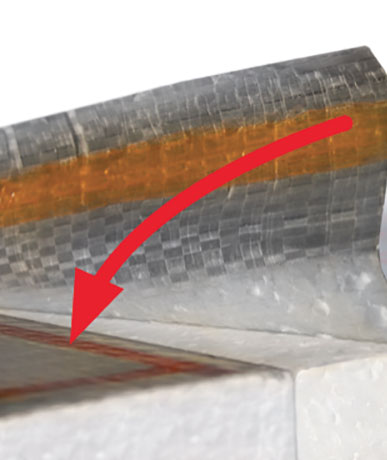

Self-adhesive flap
The self-adhesive flap increases the speed of laying and reduces the need for covering tape.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
