Europlus-Acoustic, Fast and easy to install radiant floor system. With noise reduction equivalent to 28 dB

Surface Floor
Type Single family residence, Multi-family residence, Services

Self-adhesive flap for maximum plate joining speed
Sound pressure level attenuation of 28 dB
EPS insulation protected by multilayer sheathing

Europlus-acoustic is the radiant floor heating and cooling system that forms the perfect compromise between acoustic insulation requirements, energy efficiency and climate comfort. The system guarantees reduced footstep noise, improving the liveability of living and working environments.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

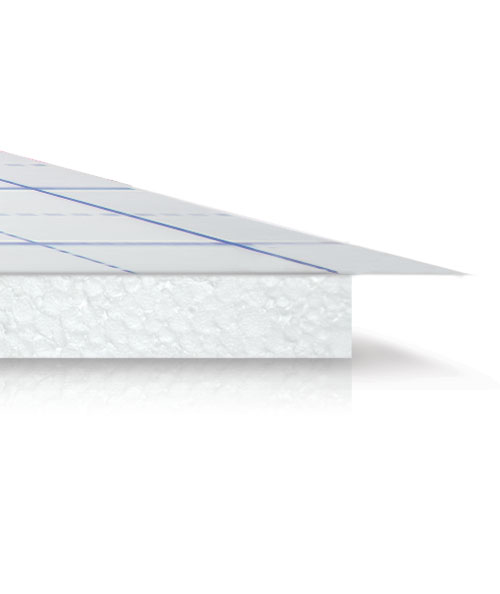

Floor heating and cooling system consisting of a flat insulating panel in sintered expanded polystyrene, protected on top by a multilayer sheathing (UNI EN 1264-4) marked with guidelines spaced 50 mm apart to assist when laying piping with an external diameter from 16 mm to 17 mm; declared thermal conductivity D equivalent to 0.040 W/m·K (UNI EN 13163), the upper sheath protrudes by ~20 mm so as to cover the joints between the slabs during laying; CP2 compressibility rating (EN 13163); dynamic rigidity not exceeding 20 MN/m3, reaction to fire (EPS insulation): Euroclass E (EN 13501-1); thickness: 30-2 mm in slabs, declared thermal resistance 0.75m2K/W. Sound pressure level attenuation DLw= 28 dB (DIN 4109-Bbl.1).

1
Multilayer sheathing
2
EPS plate
3
Midix Plus 5-layer pipe
4
Clip tacker
5
PE sheet
6
Perimeter strip

why choose this system

Insulation and soundproofing

Thanks to the presence of EPS insulation, the panel provides good downward insulation. In addition, the panel provides footfall sound pressure level attenuation of 28 dB.

DESIGN PLUS

Easy and quick to install

The self-adhesive flap increases the speed of laying, reducing the need for covering tape.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.

Discover more
