Eurogrid, Radiant floor system with high versatility of use, from residential to tertiary

Surface Floor
Type Single family residence, Multi-family residence, Services

Excellent versatility of application
Pipe embedded in the screed
Choice of insulation type (EPS or XPS) as appropriate

The Eurogrid radiant floor heating and cooling system consists of a galvanised steel mesh onto which the 5-layer MidiX Plus piping is fixed by means of a clip. The wire mesh is laid on top of an insulating board, which increases the efficiency of the radiant system; EPS or XPS insulation may be chosen on a case-by-case basis, according to project requirements.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

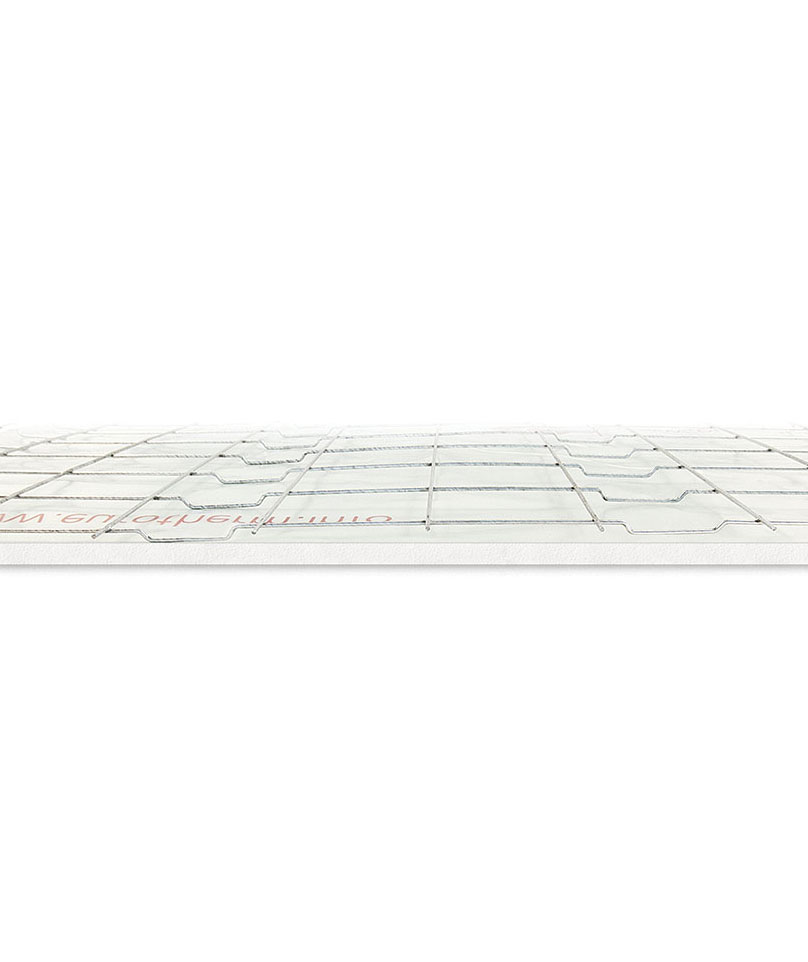

Underfloor system ideal for heating large areas, warehouses and large sheds. The Eurogrid system includes a system for attaching the piping by means of clips inserted on the support mesh, using different spacing between the pipes to adapt the capacity to individual needs. The system consists of a flat expanded or extruded polystyrene insulating panel and 3 mm steel wire electro welded mesh with a 6 mm high footprint to be laid above the insulating panel and provide support for the Eurogrid pipe clips. The system is supplied complete with all the elements necessary for correct installation, such as expansion joints, expanded polyethylene sheathing to protect the pipe, a 0.2 mm thick polyethylene sheet to be positioned under the panel and anti-shrinkage mesh for the screed.

1
3 mm steel wire electro welded mesh
2
PE sheet
3
Insulating panel (EPS or XPS)
4
Midix Plus 5-layer pipe
5
Eurogrid Clip
6
Perimeter strip
7
PE sheet

why choose this system

Versatility

The Eurogrid system stands out for its versatility, making it suitable for installation in both the residential and tertiary sectors.

DESIGN PLUS

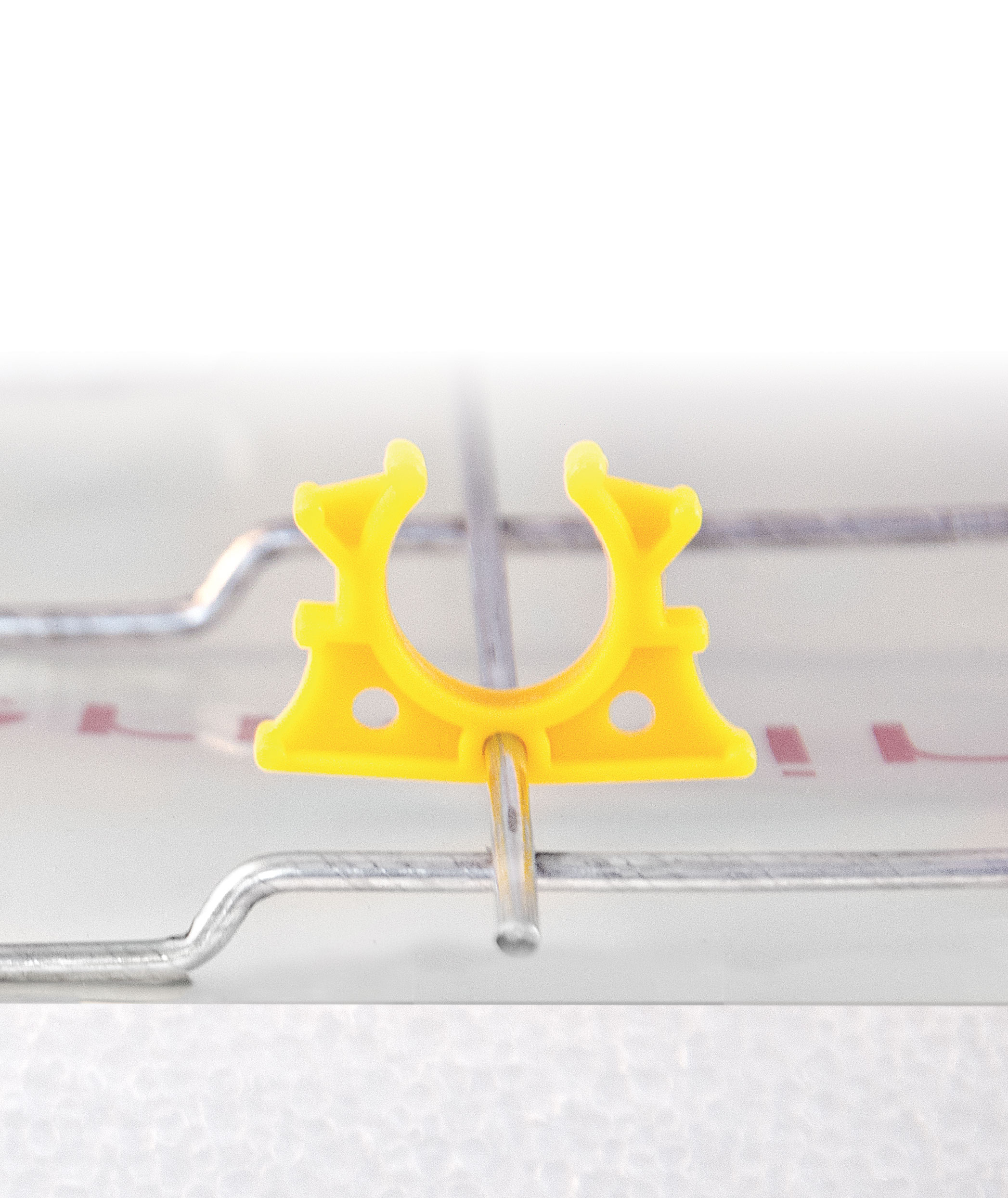

Guaranteed anchorage

The clip is designed to resist the tensile strength of the pipe and remain firmly attached to the mesh

modular mesh

Thanks to 3 different mesh sizes (10x10mm, 15x15mm, 20x20mm) it is possible to modulate the pipe pitch

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
