Euroflex TFS Mini, Thermoformed embossed radiant floor system with a thickness of just 14 mm

Surface Floor
Type Single family residence, Multi-family residence, Services

System with 14 mm height
PS thermoformed slab resistant to laying on site
Midix Plus 12x2mm tubing also possible at 45°
Self-adhesive backing with maximum adherence to the screed

Euroflex TFS Mini is an underfloor heating and cooling system consisting of a thermoformed, embossed PS sheet 1 mm thick and 14 mm high. Thanks to the self-adhesive backing, it is possible to securely attach the panel to the slab or existing floor so that it does not detach itself.The overall system height of just 19 mm and 24 mm is certified and achieved through the use of a special low thickness levelling compound.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Floor heating and cooling system that includes a thermoformed PS foil. The panel is just 14 mm thick, measuring 1125x625 mm (1150x650mm surface film) and may be used with piping having an external diameter of 12 mm and multiple intervals of 50 mm, which can be laid at 90° or 45°, depending on the heating requirements. The embossing has been designed to maximise the contact area of the pipe with the screed, increasing system performance and allowing installation without using clips. The specific shape of the embossing, together with the high thickness of the thermoformed foil, equivalent to 1 mm, provide excellent mechanical resistance to footfall. The panels have slots on the perimeter so that they can be joined by being partially overlapped, thus preventing them from moving after installation. The system includes a perimeter strip in closed cell polyethylene foil with a polyethylene sheet of a suitable height for the chosen panel, which is detachable and has a self-adhesive strip on the back at full height..

why choose this system

Air tightness and resistance

1. Self-adhesive backing with maximum adherence to the screed.
2. MidiX Plus 12x2 mm piping that can also be installed at 45°.
3. Thermoformed PS panel resistant to installation on-site.

DESIGN PLUS

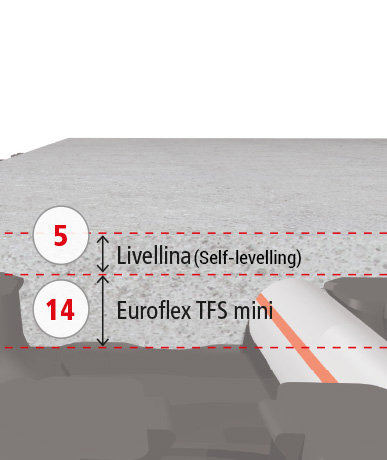

RADIANT SYSTEM THICKNESS 19 mm CERTIFIED

The combination of Euroflex TFS Mini sheet with MidiX Plus 12x2 mm pipe and low thickness self-levelling is a system certified to Qk concentrated vertical loads by the Elletipi s.r.l. laboratory. It's possible to install the radiant system in only 19 mm thickness.

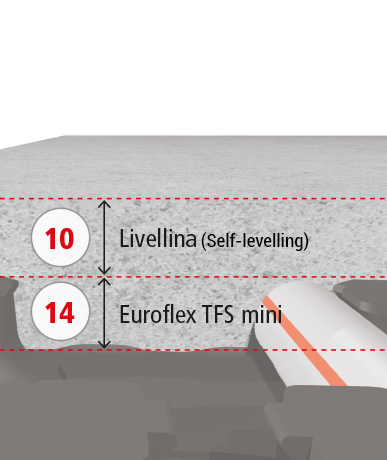

RADIANT SYSTEM THICKNESS 24 mm CERTIFIED

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
