Euroflex TF Acoustic, Thermoformed radiant floor system with noise reduction equivalent to 29 dB

Surface Floor
Type Single family residence, Multi-family residence, Services

Sound pressure level attenuation of 29 dB
High resistance to deformation
Panel with extremely resistant PS thermoformed sheathing
Quick and easy pipe laying

The Euroflex TF Acoustic radiant floor heating and cooling system guarantees excellent footfall sound insulation performance. The upper PS sheath, obtained by thermoforming, lends the embossing unrivalled mechanical strength. The system embossing is designed to maximise the contact area of the pipe with the screed, increasing the performance of the system and enabling it to be attached without the use of clips.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Floor heating and cooling system with a preformed expanded polystyrene slab protected on the top by a black PS interlocking thermoformed film 0.8 mm thick (UNI EN 1264-4) protecting the insulation, with embossing designed to allow the installation of piping with an external diameter from 15 mm to 18 mm with multiple spacing of 5 cm; declared thermal conductivity λD equivalent to 0.040 W/m·K according to UNI EN 13163; CP2 compressibility rating (deformation of 2 mm under compression of 5.0 kPa); reaction to fire (EPS insulation) Euroclass E (EN 13501-1); declared thermal resistance RD equivalent to 0.80 m2·K/W; dynamic rigidity S'=20MN/m3; attenuation of sound pressure level DLw = 29 dB (UNI EN 12354-2) with a surface mass of 110 kg/m2; reaction to fire (EPS insulation) Class E (EN 13501-1).

1
Preformed PS sheet
2
EPS plate
3
Midix Plus 5-layer pipe
4
PE sheet
5
Perimeter strip

why choose this system

High footfall noise attenuation

Thanks to the material used in its manufacture, the Euroflex TF Acoustic panel makes it possible to considerably reduce impact noise between living units (sound pressure level attenuation of 29 dB with a surface mass of 110 kg/m²).

DESIGN PLUS

Installazione rapida

RESISTANT THERMOFORMED

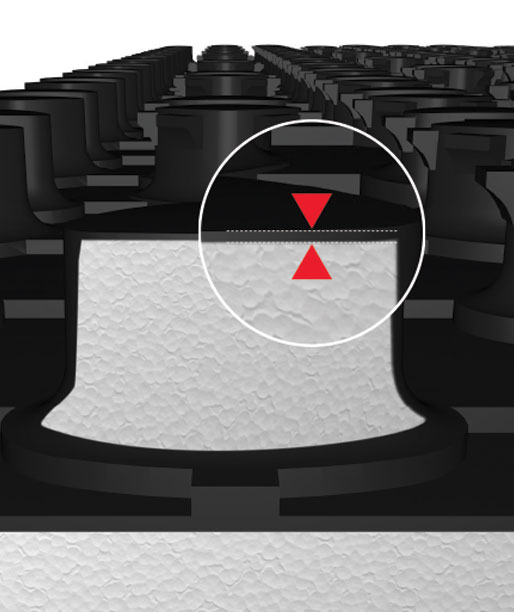

The process of thermoforming the 0.8 mm sheathing onto a preformed EPS embossing makes Euroflex TF Acoustic sheet extremely resistant during installation on the construction site, without it suffering any deformation caused by frequent walking on the surface.

Quick and easy laying

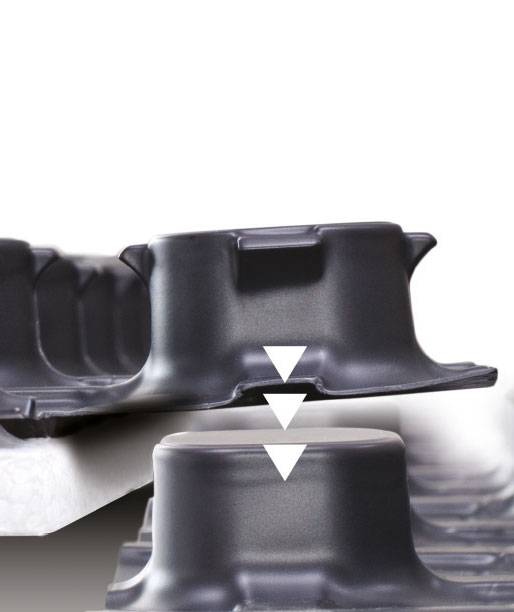

The assembly of the thermoformed panels is quick and easy, thanks to the fixing system on two sides.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
