Euroflex, A valid, cost-effective solution for large surfaces

Surface Floor
Type Multi-family residence, Services

Quick and easy laying thanks to interlocking panels
Total elimination of thermal bridges

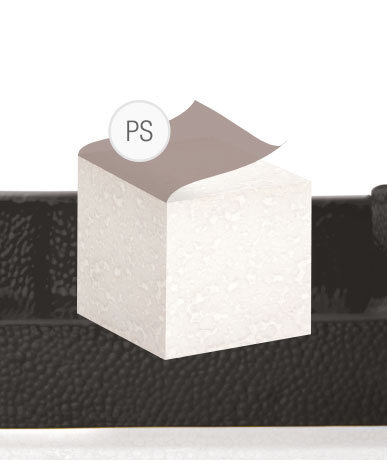

Preformed expanded polystyrene panel
Insulation panel coated with a heat-coupled protective film conforming to UNI EN 1264-4

The Euroflex radiant floor heating and cooling system is the ideal solution for large surfaces, because it combines excellent performance with the advantage of the practical and quick installation of MidiX Plus piping. Compatible with all types of cladding, Euroflex is composed of interlocking panels that completely eliminate thermal bridges and of a preformed EPS sheet protected on the top by a sheath that guarantees good downward insulation. The shape of the embossing allows the use of different pipe diameters.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

floor heating and cooling system with a pre-formed expanded polystyrene slab with declared thermal conductivity λ_D equivalent to 0.036 W/m·K (UNI EN 13163, UNI EN 12667), protected on the top by a black sheathing (UNI EN 1264-4) to protect the insulation, embossing designed to allow the installation of piping with an external diameter from 14 mm to 17 mm with multiple 5 cm spacing; the insulating panel is interlocking to eliminate thermal bridges - reaction to fire (EPS insulation) Class E (EN 13501-1).

1
Sheathing
2
EPS plate
3
Midix Plus 5-layer pipe
4
PE sheet
5
Perimeter strip

why choose this system

An excellent embossed board at an affordable price

The Euroflex system is designed to reduce costs without reducing performance, an advantage that should not be over-estimated in the case of large surfaces. Various features, such as the simplified interlocking or the black protective sheathing, make installation easier and contribute to strengthening the sheet. The embossing is designed to maximise the contact area of the pipe with the screed and increase the performance of the installation.

DESIGN PLUS

Coated insulation

The EPS insulation is protected by a heat-bonded protective film in accordance with EN 1264-4.

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
