Ecoplus, Radiant floor system developed using eco-friendly materials for bio-architecture

Surface Floor
Type Single family residence, Multi-family residence, Services

100% natural wood fiber insulation
Panel with low dynamic rigidity | Patented clip fastening system

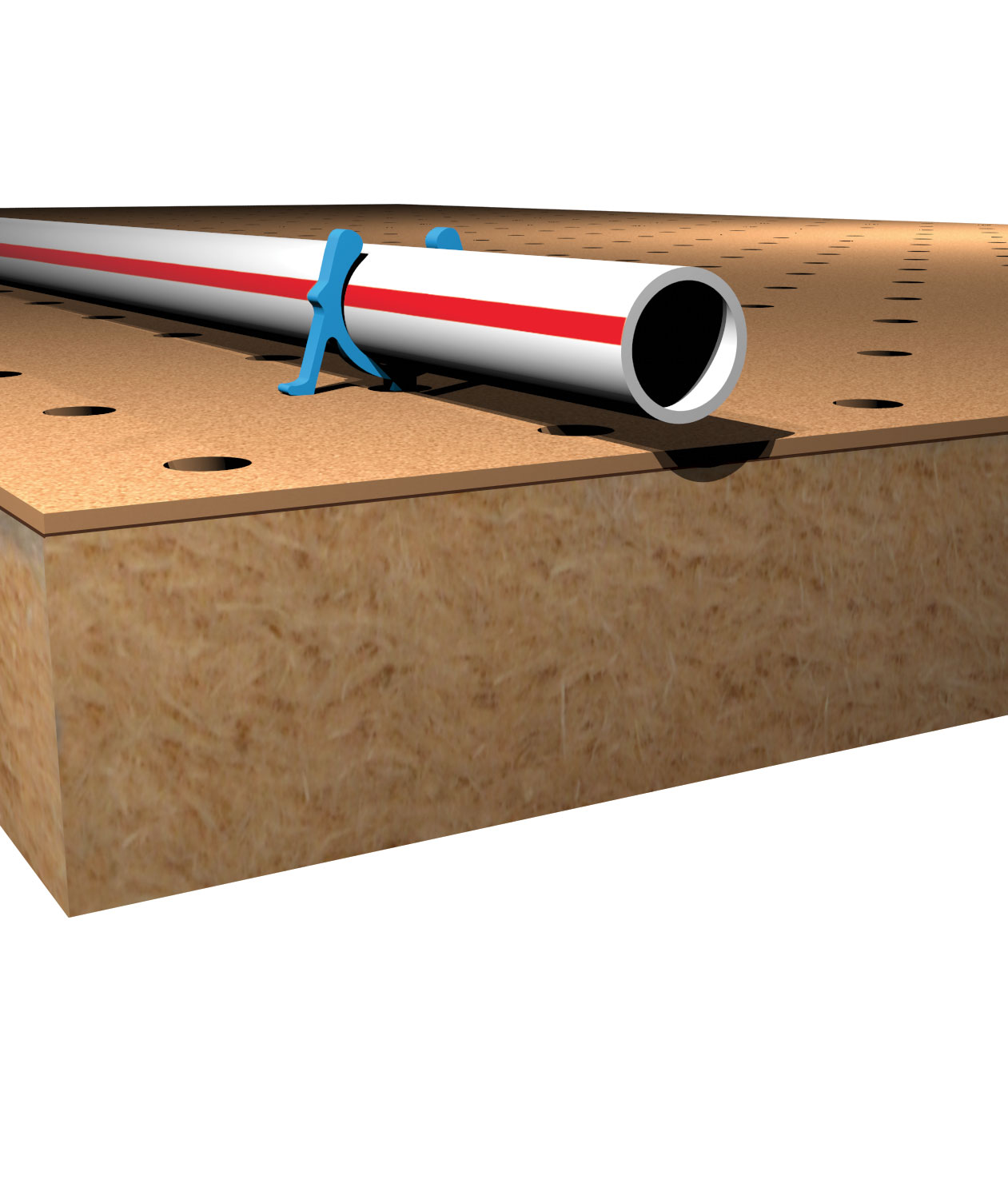

Patented clip fastening system for maximum pipe tightness

Developed according to criteria of eco-sustainability, the insulation package of the Ecoplus radiant floor heating and cooling system consists exclusively of wood, a material that provides good thermal insulation.The clip support plate follows the same construction procedures as the Ecoplus plate, but with higher density. Overlapping the slabs achieves a footfall noise attenuation of about 31 dB, calculated according to UNI EN 12354-2.

SMART RADIANT

The smart and easy-to-manage system
Eurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use.
The radiant system has never been so smart.
Discover now all the features and benefits of SmartComfort 365.

DISCOVER MORE

TECHNICAL DATA SHEET

Underfloor heating and cooling system consisting of a wood fiber insulating panel with declared thermal conductivity λ equivalent to 0.038 W/m·K (UNI EN 13171 and UNI EN 12667) and a CP2 compressibility rating (UNI EN 12431), protected on the top and bottom by polyethylene-coated paper with an SD value equivalent to 6 m; the upper part of the package consists of a high-density wood fiber slab to which the clips used to anchor the piping may be attached. The system is available in 2 different thicknesses that can be selected depending on the installation condition and is supplied together with a compressed natural cork insulation board available in 3 different thicknesses. The system offers dynamic stiffness of 28 MN/m³ (in the case of 25 mm thickness) and 40 MN/m³ (in the case of 34 mm thickness). It is possible to use ø16 mm piping with spacing from 10 to 20 cm. The system includes a perimeter strip and expansion joints made of corrugated and waxed cardboard, ecoplus type polyamide slab clamps necessary for joining the perforated wood fiber sheets, polyethylene foam insulation sheathing for pipe protection, and a 0.2 mm thick polyethylene sheet to be inserted under the panel. In the case of self-levelling screed, a polyethylene sheet with a thickness of 0.1 mm can be supplied.

1
High-density wood fiber slab with special clip attachment system
2
Polyethylene-coated paper
3
Wood fiber insulating 100% natural
4
Polyethylene-coated paper
5
Midix Plus 5-layer pipe
6
Clip tacker
7
PE sheet
8
Perimeter strip

why choose this system

100% natural wood fiber insulation

The insulation board is totally natural because it is made of wood fiber obtained from small pieces of wood pressed and glued together using lignin, a glue naturally contained in wood. This is a primary requirement for the panel to be used in green architecture. DOWNLOAD THE

DESIGN PLUS

Patented clip fixing system

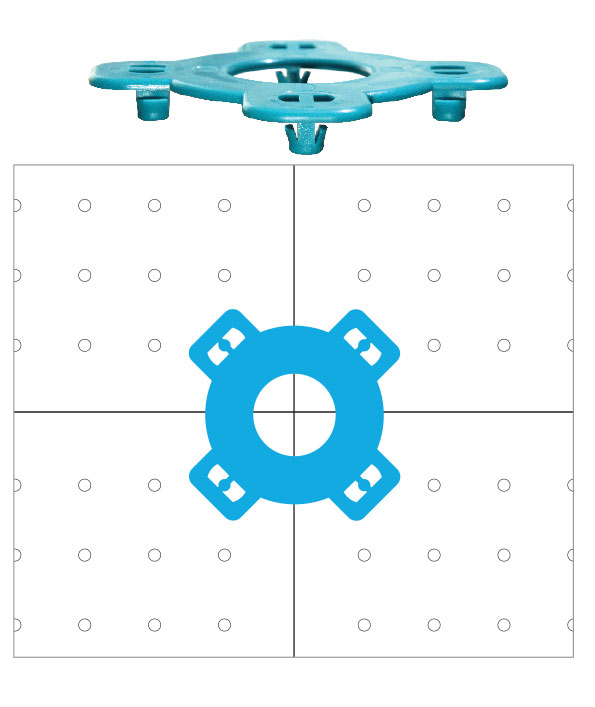

The system is equipped with a specially designed clip that allows four Ecoplus panels to be joined together quickly and easily.

Panel with low dynamic rigidity

Panel with low dynamic rigidity for the benefit of footfall noise abatement while remaining in class CP2 and therefore usable with floor loads of more than 500 kg/m².

Lifetime warranty

Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
