Leonardo 3.0 plus, Constantly improving efficiency and performance
- Surface Ceiling
- Type Single family residence, Multi-family residence, Services
Istituto Giordano certified yield

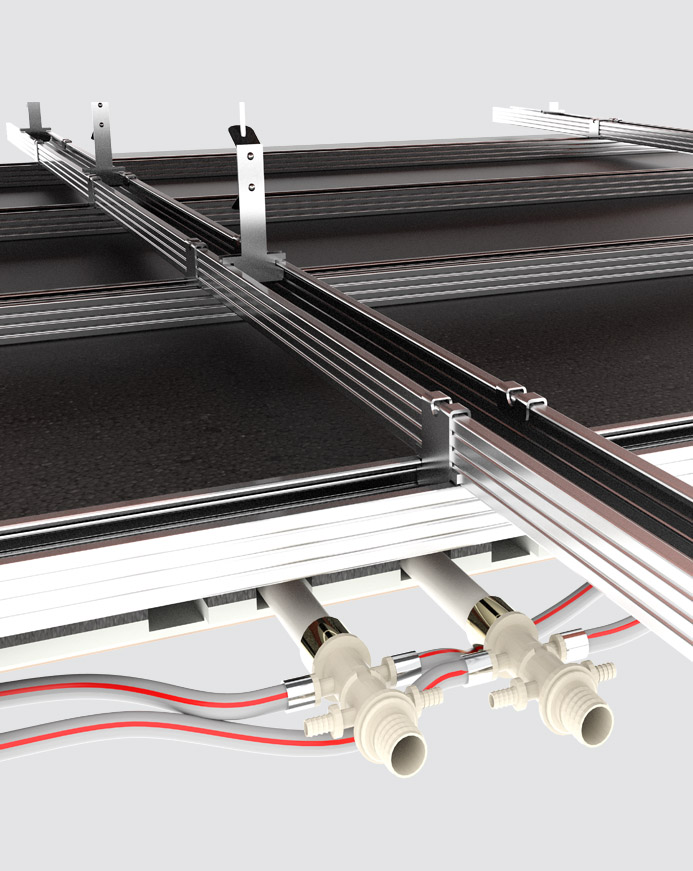

Adductions inserted in the panel
Radiant system with Activ'Air® technology that can absorb and neutralize formaldehyde in the air.

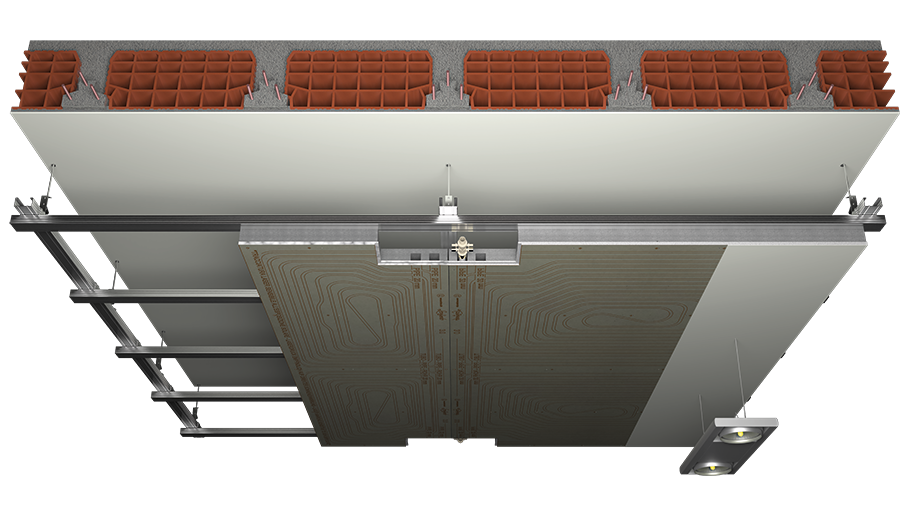

The Leonardo 3.0 plus system consists of a 10 mm plasterboard panel with Activ'Air ® technology, coupled with 40 mm graphite-sintered expanded polystyrene for a total thickness of 50 mm. The plasterboard panel is complete with 5-layer polyethylene piping with EVOH oxygen barrier. The MidiX Plus high-temperature resistant polyethylene pipe, with 3 cm spacing, is arranged in a serpentine pattern. It is ideal for both winter heating and summer cooling.
SMART RADIANTThe smart, easy-to-manage systemEurotherm radiant systems are equipped with management technology that is as advanced as it is simple to use. Radiant systems have never been smarter. |
|---|
TECHNICAL DATA SHEET
10 mm pre-finished plasterboard panel with Activ'Air® technology laminated with 40 mm graphite-sintered expanded polystyrene (lD=0,030 W/m·K according to EN 13163), complete with 5-layer, MidiX Plus type II high-temperature resistant polyethylene PE-RT piping (DIN 16833, ISO 24033, ISO 22391, ISO 21003, EN 1264) with EVOH oxygen barrier in the pipe wall and vapour permeability of less than 0.32 mg/(m 2 d) at 40°C and 3.6 mg/(m 2 d) at 80°C (within DIN 4726 and EN 1264-4 limits), class 4 and 5 mechanical strength characteristics at 6 bar (ISO 10508) and an expected service life of 50 years; MidiX Plus 10 x 1.3 mm piping arranged in a serpentine pattern and 3.5 cm spacing; on the surface of the panel there is a laser drawing indicating the position of the pipe; piping complete with rings for connection; the insulation houses a 20 x 2 mm (EN ISO 21003) PE-RT type II (PE-RT II/AL/PE-RT II) multilayer pipe bar, necessary for the hydraulic connection of the panels to the distribution manifold. Smooth finish.
- 1
Graphite-sintered expanded polystyrene insulation Neopor® from BASF
- 2
Plasterboard sheet with laser marking pipe safety area
- 3
Midix Plus 5-layer pipe
why choose this system
Low thermal inertia
Thanks to the diameter and thickness of the pipe used (MidiX 10x1.3 mm), the fact the piping is integrated in the plasterboard, which increases the yield by 8% compared to the pipe inserted in the insulation, and the special serpentine geometry, the Leonardo ceiling system with guarantees high yield a very low system thermal inertia.

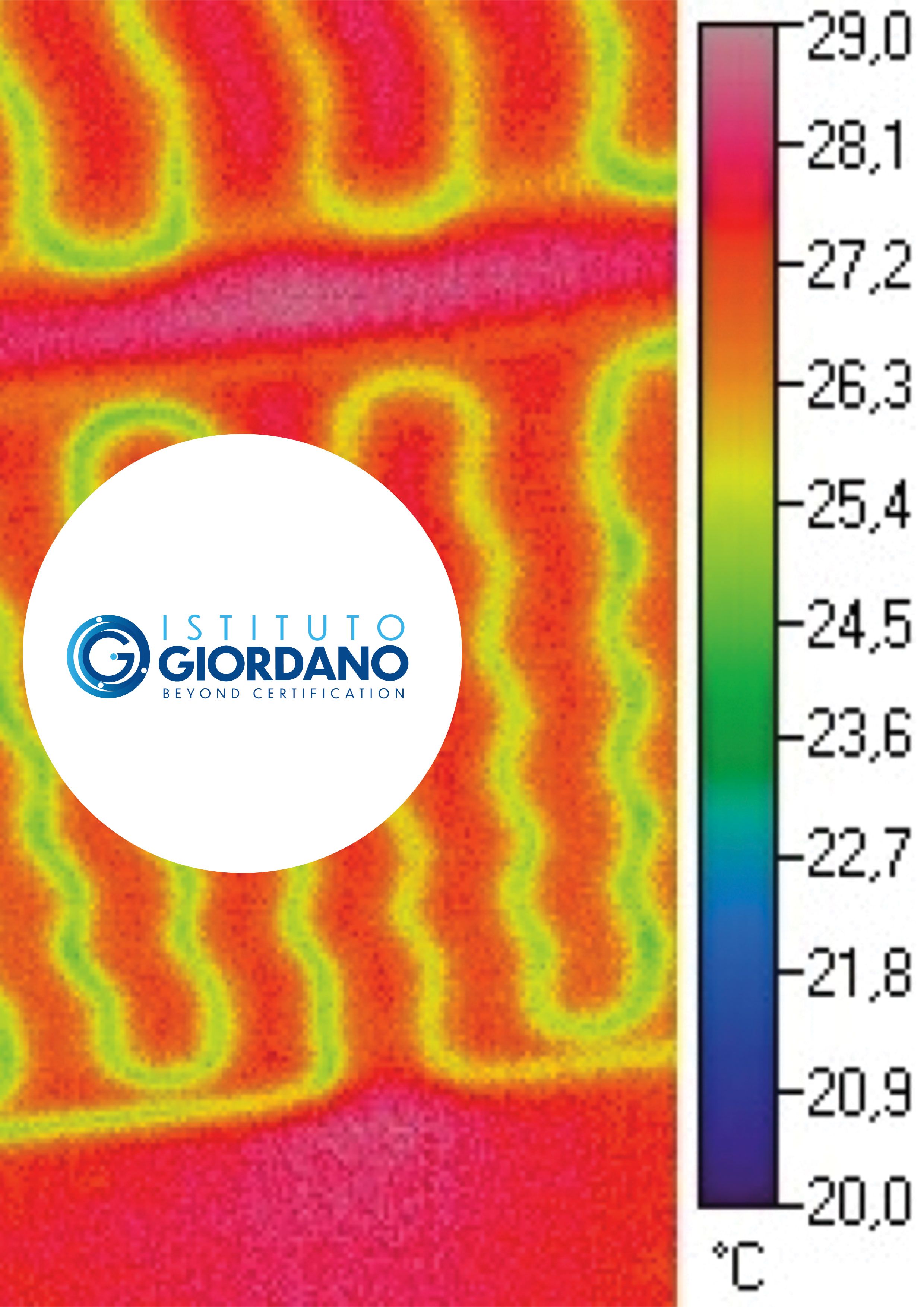

The adjacent thermographic photographs illustrate a Leonardo system operating in cooling mode at an average water temperature of 18° C. Note how, after just 20 minutes, the system is already operating at full capacity.
DESIGN PLUS
Flexible design and installation

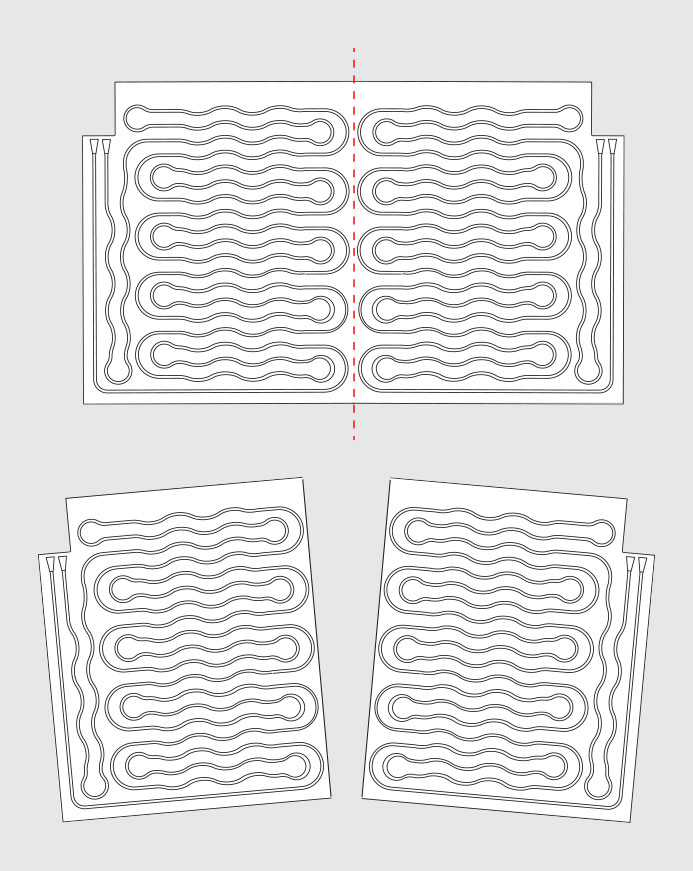

The extreme versatility of the Leonardo system can be seen in both design and installation. The panel has been designed with an integrated pipe with two independent circuits. It is therefore possible to cut the plasterboard panel into two exactly mirror-image parts, each equipped with its own pipework.
Maximum tightness
of fittings
over time
The use of special fittings without O-rings for Piping 10x1.3 mm allows for maximum tightness over time and reduced pressure losses.
System
certified
Giordano Institute
Heating and cooling efficiencies certified according to UNI EN ISO 11855 - UNI EN ISO 11855.
Lifetime warranty
Eurotherm radiant systems safer and guaranteed without time limit by ITAS insurance. Eurotherm now offers a full lifetime warranty original parts and breakdown warranty on its entire radiant systems range.
