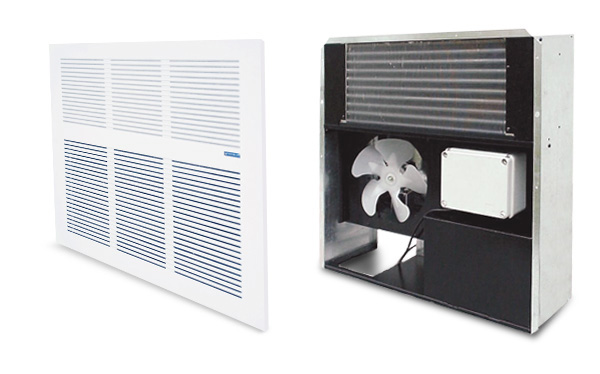

Dehumidifier 320 DI is a refrigeration cycle unit developed for vertical built-in installation indoors. The dehumidifier is capable of isothermal dehumidification during the summer period, which means its dehumidifies air and returns it to the room at about the temperature at which it was extracted. Dehumidification is based on the physical principle that, when moist air comes into contact with a sufficiently cold surface, it forms condensation droplets, which are then removed via the dedicated drain. In addition to the refrigeration cycle heat exchangers, (evaporator and condensator), the unit also includes a water-tight compressor, pre- and post-cooling batteries and an extremely quiet, low speed fan. The unit requires connection to a chilled water circuit for its operation. The built-in frame and wooden grid are not included but are available as accessories.
Nominal air flow rate: 300 m3/h
Condensing capacity (recirculation): 24.0 l/g
Nominal inlet water temperature: 16°C
Complete with on-board humidistat
Optional wall frame and grid (not included)
Dimensions and measurements
